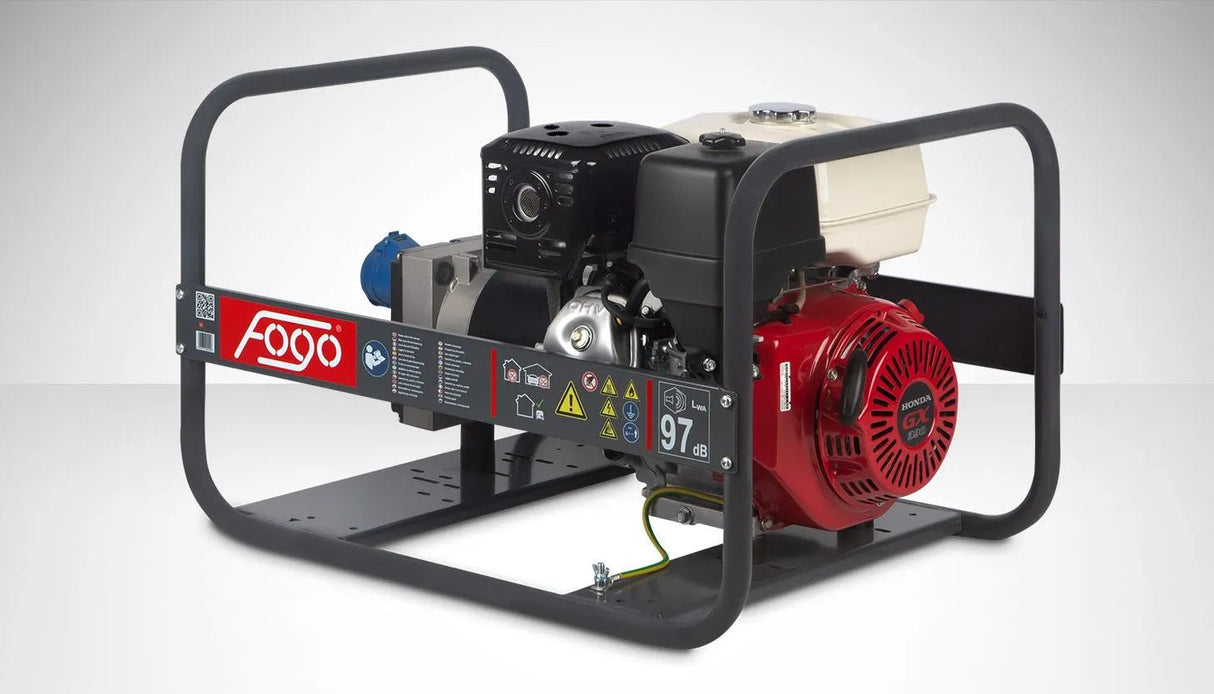

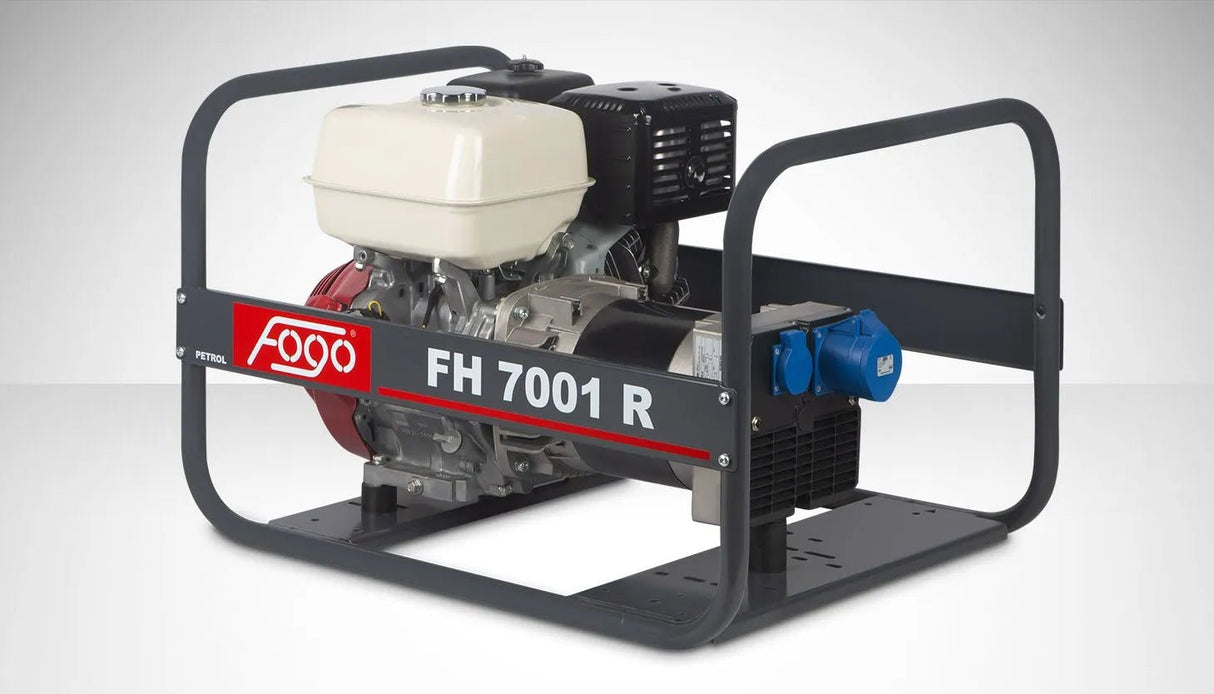

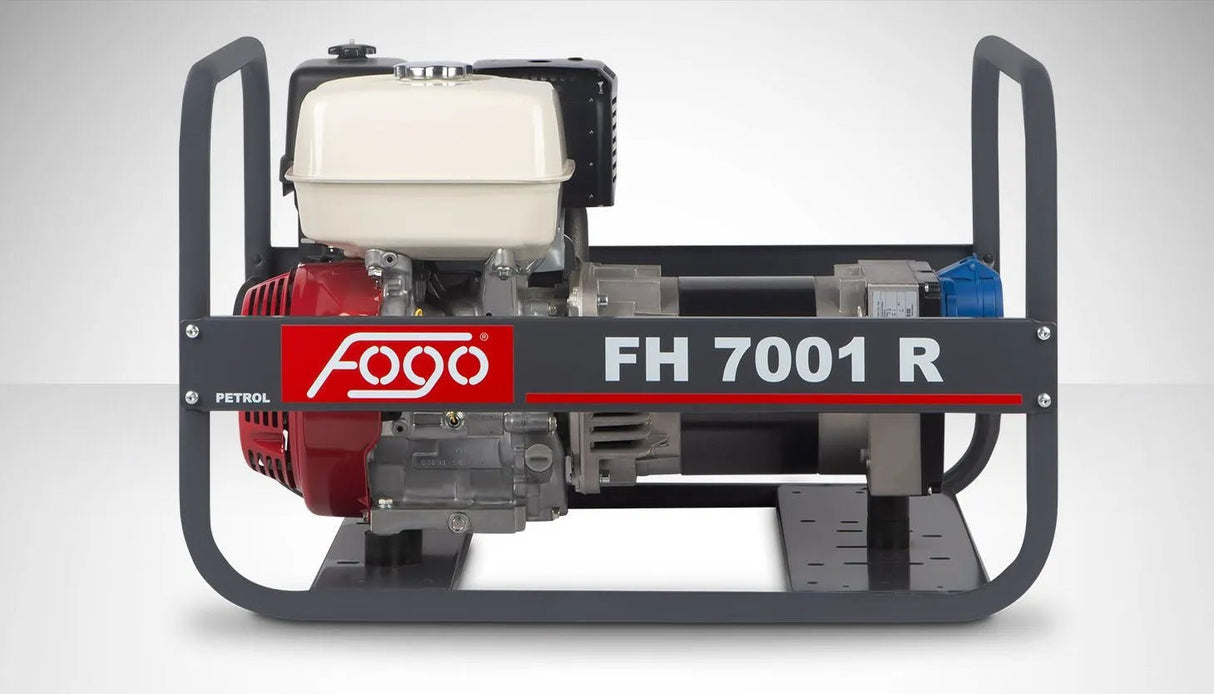

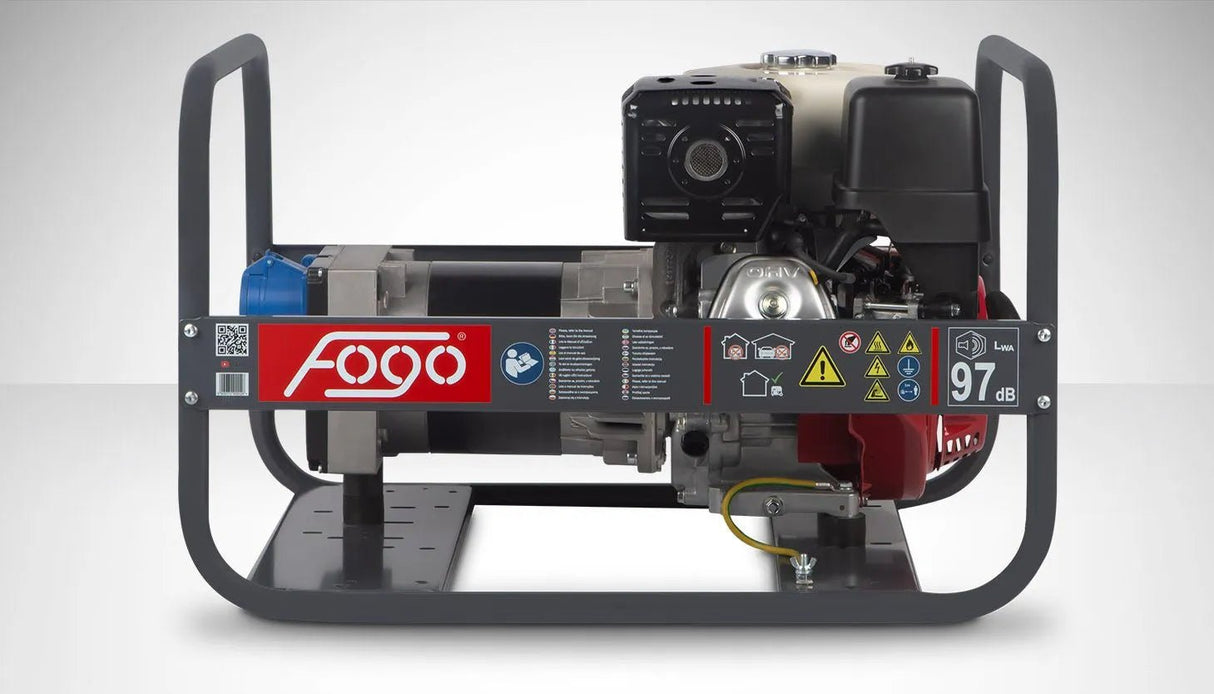

Power Generator FOGO FH 7001 R

The FOGO FH 7001 R is a compact, open-frame generator for single-phase 230 V power supply. With a maximum output of 6.2 kW and a rated output of 5.6 kW, the unit provides sufficient power for many professional applications where a 400 V three-phase supply is not required.

The generator is powered by a proven Honda GX 390 gasoline engine with 389 cm³ displacement. The air-cooled, single-cylinder, four-stroke engine is designed for robust, simple operation and is started manually. The fuel tank holds 6.1 liters, and the manufacturer specifies a consumption of 2.7 l/h, depending on load and operating conditions.

The output power can be used via a 230 V 16 A socket and a 230 V 32 A socket. The full single-phase power is available via the 32 A socket. This makes the FOGO FH 7001 R particularly interesting for consumers with higher 230 V power consumption, such as larger power tools, pumps, machines, lighting, or mobile workstations.

The voltage stabilization is ± 2 %. The low THD value of ≤ 6 % reduces voltage fluctuations and distortions compared to simple unregulated devices. However, for particularly sensitive electronic consumers, it should always be checked whether the requirements of the respective device match the generator.

Standard features include overload protection and an oil level sensor. The generator has insulation class H and protection class IP 23. The device weighs 69 kg and has compact dimensions of 790 × 580 × 505 mm.

Advantages at a glance

• Single-phase generator for 230 V consumers
• 5.6 kW rated power and 6.2 kW maximum power
• Honda GX 390 gasoline engine with 389 cm³ displacement
• Full single-phase power usable via 230 V 32 A socket
• Automatic voltage stabilization with ± 2 %
• Low THD value of ≤ 6 %
• Short-circuit starting current 300 %
• Overload protection and oil level sensor as standard
• Open, robust frame design
• Compact design for mobile use

Technical Data FeatureValue Manufacturer FOGO Model FH 7001 R Article number 36755 Type Single-phase gasoline generator Frequency 50 Hz Voltage 230 V Maximum power 6.2 kW Rated power 5.6 kW Rated current 24.3 A Voltage stabilization ± 2 % THD value ≤ 6 % Short-circuit starting current 300 % Generator insulation class H Generator protection class IP 23 Engine Honda GX 390 Displacement 389 cm³ Cooling Air-cooled Cylinders 1 Stroke 4-stroke Oil capacity 1.1 l Starting system Manual Fuel Gasoline Fuel tank 6.1 l Consumption 2.7 l/h Sound power level LwA 97 dB(A) Weight 69 kg Length 790 mm Width 580 mm Height 505 mm Connections ConnectionType Socket 230 V 1 × 16 A Socket 230 V 1 × 32 A Standard equipment

• Automatic voltage regulation
• Socket 230 V / 16 A
• Socket 230 V / 32 A
• Overload protection
• Oil level sensor

Manufacturer's note: On the FOGO website, the voltage regulation is described as DVR, in the product card AVR is mentioned as standard equipment. For the article description, therefore, automatic voltage regulation or voltage stabilization should be assumed.

Optional accessories and service items

• Exhaust hose, Art. No. 15876
• Exhaust adapter, Art. No. 10118
• Hour meter, Art. No. 23300
• Transport set, Art. No. 34994
• Service kit with air filter, spark plug and engine oil, Art. No. 23294

Standards and guidelines

• 2000/14/WE Noise Directive 2005/88/WE
• 2006/42/WE Machinery Directive
• 2014/35/UE Low Voltage Directive
• 2014/30/UE EMC Directive

Scope of delivery / Equipment according to manufacturer

• FOGO FH 7001 R Generator
• 230 V 16 A socket
• 230 V 32 A socket
• Overload protection
• Oil level sensor
• Automatic voltage regulation

Notes

The FOGO FH 7001 R is a single-phase 230 V generator and does not provide 400 V three-phase power. For consumers with high starting currents, such as larger motors, pumps or compressors, suitability should be checked based on the actual starting current data.

Operation must only take place outdoors or in sufficiently ventilated areas. Exhaust gases contain carbon monoxide and must not enter enclosed spaces. For building power supply or emergency power supply, professional connection with suitable grid switching by a qualified electrician is required.
