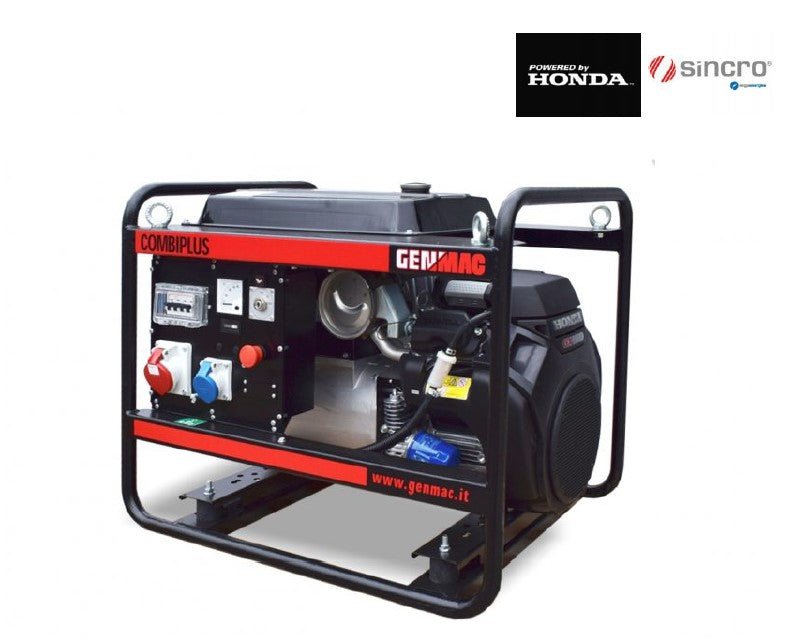

Power generator GENMAC COMBIPLUS G18000HEO-E5 AVR
The COMBIPLUS G18000HEO-E5 AVR from GENMAC was developed for professional applications requiring power, reliability, and a stable power supply. The generator delivers 400/230 V at 50 Hz and operates at 3000 rpm. The regulated generator with an AVR voltage regulator supports a stable output voltage, which makes the power generator particularly versatile.
The power generator is equipped with a powerful Honda iGX800 gasoline engine, electric start, low oil pressure protection, and an encapsulated and vibration-dampened control panel. The sturdy COMBIPLUS tubular frame with vibration dampers ensures robust construction for daily use. The integrated sockets, circuit breakers, analog voltmeter, analog hour meter, emergency stop button, and the 10-pin connector for remote start or automatic transfer switch make the generator a practical solution for professional operation.
Technical Data
- Model: GENMAC COMBIPLUS G18000HEO-E5 AVR
- Frequency: 50 Hz
- RPM: 3000 rpm
- Voltage: 400/230 V
- Phases: 3-phase
- Continuous Power PRP: 16.0 kVA
- Continuous Power PRP: 12.8 kW
- Stand-by Power LTP: 17.5 kVA
- Stand-by Power LTP: 14.0 kW
- Power Factor cos φ: 0.8
- Current PRP/LTP: 23 / 25 A
- Width: 870 mm
- Depth: 620 mm
- Height: 690 mm
- Net Weight: 166 kg
Engine
- Engine Manufacturer: Honda
- Engine Model: iGX800
- Engine Power PRP: 13.30 kW
- Engine Power LTP: 14.63 kW
- Fuel: Gasoline
- Cylinders: 2
- Intake: Naturally aspirated
- Cooling System: Air
- Displacement: 0.78 L
- Speed Governor: Electronic
- Starting Method: Electric
- Stationary Governor Accuracy: 2.00 %
- Voltage: 12 VDC
- Exhaust Emission: Euro Stage 5
Generator / Alternator
- Manufacturer: Sincro
- Model: FT2MGR
- Excitation Type: Self-excited
- Regulation: AVR
- Regulation Accuracy: ± 5.00 %
Structure and Equipment
- Structure Type: COMBIPLUS
- Tank Capacity: 19 L
- Safety Tray: No
- Exhaust Pipe Diameter: 50 mm
- Control Panel: QFBP-OS-PT5
- Socket: 1 × CEE 32 A 400 V
- Socket: 1 × CEE 16 A 230 V
- Thermal Switch: Present
- Magnetothermal Switch: Present
- Analog Voltmeter: Present
- Analog Hour Meter: Present
- Emergency Stop Button: Present
- Start Key: Present
- Low Oil Pressure Protection: Present
- 10PIN Connector for Remote Start / Automatic Transfer Switch: Present
Fuel Consumption
- Consumption at 25 % Load: 1.71 L/h
- Consumption at 50 % Load: 3.42 L/h
- Consumption at 75 % Load: 4.75 L/h
- Consumption at 100 % Load: 5.70 L/h
- Autonomy at 75 % Load: approx. 4 hours
Engine Fluids and Equipment
- Lubricant: Oil SAE 15W40
- Oil Capacity: 1.80 L
- Coolant: Air
- Intake Filter: Paper cartridge
- Battery Capacity: 45 Ah
- Number of Batteries: 1
Available Options
- Wheel Kit
- Preparation for Automatic Transfer Switch / ATS
- Flexible Stainless Steel Exhaust Pipes in various lengths
- Wireless Remote Control or Wired Remote Control
- Glow Plugs for Cold Start in Diesel Models
- Residual Current Device / FI
- Ground Rod
- Regulated Generator with AVR Voltage Regulator
-
