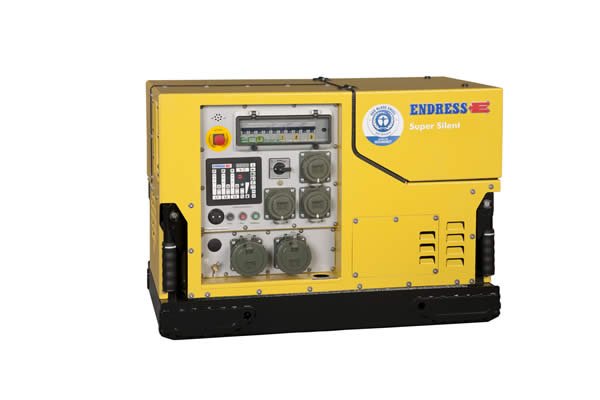

Portable power generator ENDRESS ESE 1308 DBG ES DIN silent

Name: Portable power generator ENDRESS ESE 1308 DBG ES DIN silent
Brand: Endress
Price: 14617.61 EUR
Availability: InStock

€14.617,61 €14.788,44

VAT included. Shipping will be calculated at checkout.

Portable power generator ENDRESS ESE 1308 DBG ES DIN silent is not in stock and will be shipped as soon as available again.

Delivery time: more than 6 months

Collection possible from warehouse Fabrikstr. 1

Collection date after consultation

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

Your legal guarantee rights

LEGAL GUARANTEE Minimum two-year legal guarantee protection for goods sold in the European Union. Consumers can claim their rights under the legal guarantee of conformity, for example if goods: do not match the description; do not function as intended. Sellers are liable for any lack of conformity which existed when the goods were delivered, and which becomes apparent within the legal guarantee period. Sellers in such a situation are required to offer: free repair or free replacement; in some cases, a price reduction or full reimbursement. Some countries have a longer legal guarantee period. For second-hand goods, a shorter period may apply, but not less than one year. For more information on your rights in a specific country, scan the QR code below or ask the seller. europa.eu/youreurope/guarantees What to do if you receive non-conforming goods: 1 Contact the seller as soon as possible to report the issue; 2 Provide proof of purchase, such as a receipt, invoice, or bank statement. Sellers and producers may also offer commercial guarantees, which apply independently from the legal guarantee. For example, you may see this GARAN label representing a commercial guarantee of durability offered by the producer at no additional cost and covering the entire good.

Open the legal guarantee notice on Your Europe

ENDRESS · PORTABLE GENERATOR · DIN silent

ENDRESS ESE 1308 DBG ES DIN silent

The ESE 1308 DBG ES DIN silent is a three-phase 400/230 V portable petrol generator with a BRIGGS & STRATTON VANGUARD 22 HP engine, DUPLEX alternator and electric start including battery. Its continuous three-phase output is 12 kVA / 9.6 kW. IP54 generator protection and Electronic voltage regulation are specified for this model.

Key specifications

Continuous three-phase

12 kVA

Engine

Briggs & Stratton

Fuel tank

12 l

Runtime at 75%

3.5 h

Output voltage

400/230 V

Weight

144 kg

Product description

The ESE 1308 DBG ES DIN silent combines a four-stroke petrol engine with 627 cm³ displacement, 3,000 rpm operating speed and a robust steel-frame construction. It is suitable for temporary power supply where the correct electrical protection, ventilation and load profile have been considered. The DIN series is intended for professionally equipped mobile operations; optional accessories depend on the specific variant.

Features & equipment

✓ E-MCS 4.0 multifunction display

✓ maxdrive power management

✓ Fuel supply pump system and three-way valve

✓ Portable steel frame

✓ Four-stroke petrol drive

✓ Generator overload protection

✓ Model-specific socket configuration

✓ Options according to the order

Applications

Fire brigades & emergency services

Mobile technical operations

Temporary site supply

Emergency response equipment

Technical specifications

Power & voltage

Continuous power 3~	12 kVA / 9.6 kW
Continuous power 1~	7 kVA / 6.3 kW
Rated voltage	400 V 3~ / 230 V 1~
Frequency	50 Hz
Rated current 3~	17.3 A
Rated current 1~	30.4 A
Phase configuration	Three-phase and single-phase outputs

Engine

Engine manufacturer	Briggs & Stratton
Engine model	BRIGGS & STRATTON VANGUARD 22 HP
Engine design	2 cylinder, four-stroke petrol
Displacement	627 cm³
Operating speed	3,000 rpm
Fuel	Petrol
Starting system	Electric start including battery

Alternator & regulation

Manufacturer	ENDRESS
Generator type	DUPLEX
Voltage regulator	Electronic
Generator protection	IP54
Frequency	50 Hz
Total load rating	Observe rated output and individual socket limits

Fuel tank & operation

Fuel	Petrol
Tank capacity	12 l
Consumption at 75%	3.4 l/h
Runtime at 75%	3.5 h
Starting	Electric start including battery
Operation	Outdoors; follow the manual and ventilation rules

Sockets & electrical safety

Outlet	3 × Schuko 230 V / 16 A
Outlet	1 × CEE 400 V / 16 A
Protection rating	IP54
Load protection	According to installed circuit protection
Insulation monitoring	Optional / check the supplied unit
Building feed-in	Requires a separately designed compliant changeover and connection

Dimensions & weight

Length × width × height	820 × 440 × 580 mm
Weight	144 kg
Sound power LWA	92 dB(A)
Sound pressure LPA	67 dB(A)

Equipment & additional data

Feature	E-MCS 4.0 multifunction display,maxdrive power management,Fuel supply pump system and three-way valve
Options	Only if ordered; verify model-specific accessory availability
Model reference	ESE 1308 DBG ES DIN silent

Technical figures refer to the listed variant. Observe socket ratings and do not add three-phase and single-phase outputs.
