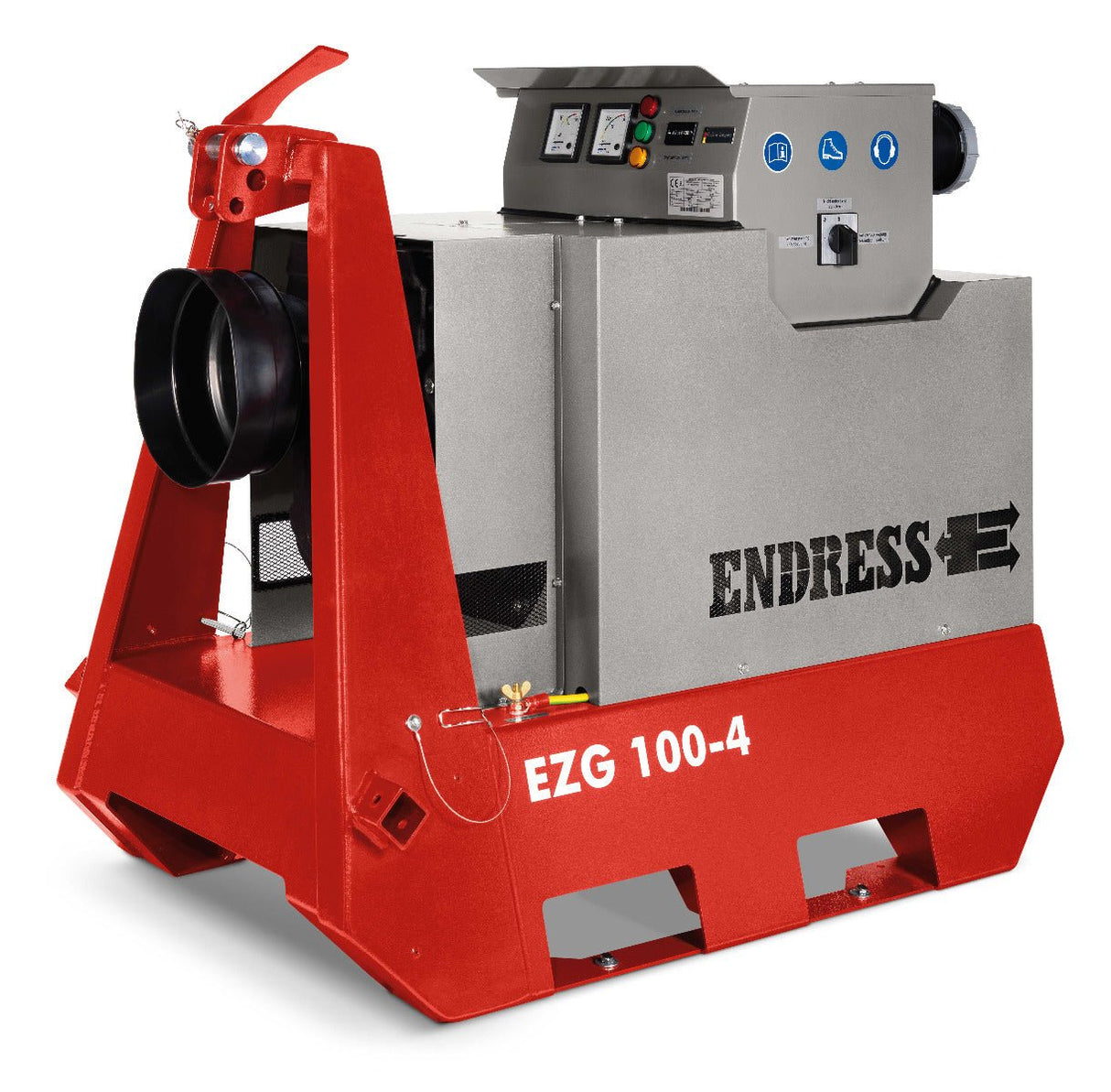

PTO generator ENDRESS EZG 100/4 II/TN-S
ENDRESS · PTO GENERATOR · II/TN-S
ENDRESS EZG 100/4 II/TN-S
ENDRESS EZG 100/4 II/TN-S is a tractor-driven synchronous PTO generator with 100 kVA / 80 kW rated continuous output at 400/230 V, 50 Hz. It requires about 144 kW / 195 hp tractor power and 750 rpm PTO shaft speed. The II/TN-S configuration combines field operation with insulation monitoring and professionally installed building feed-in via a CEE 400 V / 125 A · 1h connection.
Key specifications
Current manufacturer reference dimensions and weights may differ from the older SEV listing. Verify exact ordered version.
Product description
Power comes from the tractor's PTO through a geared synchronous alternator, not from a separate combustion engine. The correct shaft speed is essential for stable output; frequency monitoring assists the operator. A four-pole selector separates field operation (IT, monitored insulation) from TN-S building feed-in; protective devices on the building side must be compatible.
Features & benefits
Applications
Technical specifications
Rated output and voltage
| Continuous output | 100 kVA / 80 kW |
| Nominal voltage | 400 V 3~ / 230 V 1~ |
| Frequency | 50 Hz |
| Three-phase nominal current | 144 A |
| Power factor | cos φ 0,8 |
Tractor and PTO
| Drive | Tractor PTO (no on-board engine) |
| Recommended tractor output | 144 kW / 195 hp |
| PTO speed | 750 rpm |
| Alternator speed | 1,500 rpm |
| Gear oil | SAE 90 |
Alternator and voltage control
| Type | Synchronous alternator |
| Voltage control | AVR |
| Generator enclosure rating | IP44 |
| Control panel rating | IP54 |

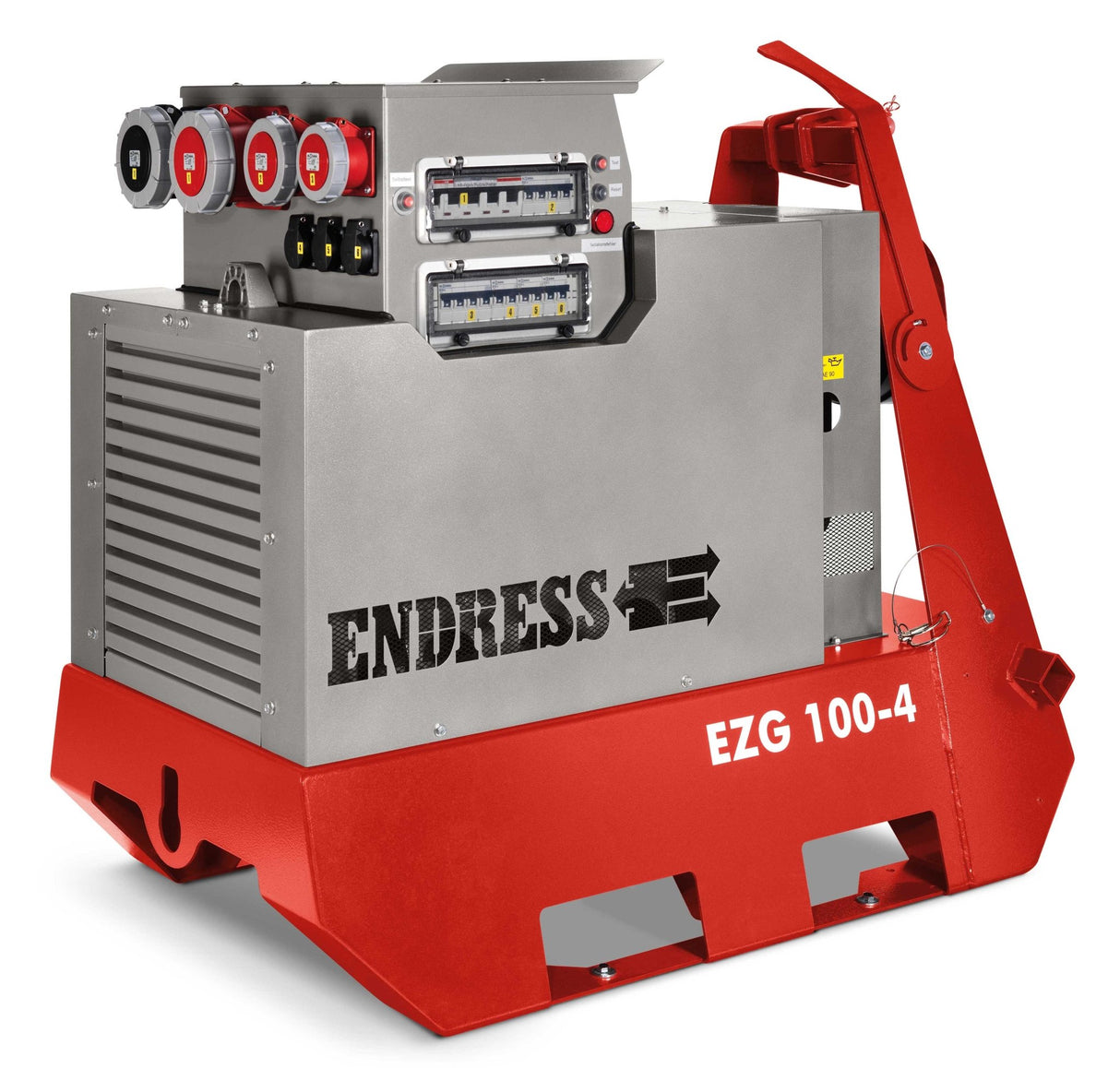

Outlets and feed-in
| Outlet | 3 × Schuko 230 V / 16 A |
| Outlet | 1 × CEE 400 V / 16 A |
| Outlet | 1 × CEE 400 V / 32 A |
| Outlet | 1 × CEE 400 V / 125 A |
| Building feed-in (1h) | CEE 400 V / 125 A · 1h |
Electrical protection
| Operating mode | II/TN-S |
| Insulation monitoring | For field operation |
| Protection | Insulation monitoring in IT field mode; building protective devices for TN-S feed-in |
| Building feed-in | Only with compliant changeover equipment |
Dimensions and weight
| Length × width × height | 1130 × 740 × 1082 mm |
| Weight approx. | 565 kg |
| Three-point linkage | Kategorie 3 |
Further specifications
| Model | EZG 100/4 II/TN-S |
| Manufacturer | ENDRESS |
| Integrated fuel tank | None; tractor-powered |
| Additional equipment | Wheel kit and matching drive shaft depending on variant |
| Reference | Current ENDRESS II/TN-S brochure |
Observe the original operating manual. The exact machine, protective earthing and any building feed-in must be checked by qualified personnel.
