Rental unit energy storage ESS D 30/30
Rental unit energy storage ESS D 30/30 - day is not in stock and will be shipped as soon as available again.
Availability for pickups could not be loaded
Questions about the product and rental?
Questions about the product and rental?
Shipping information
Shipping information
Shipping costs are calculated based on weight and destination country. A shipping cost calculator for the entire contents of your shopping cart is available here on the product page (below the price information).
We ship items up to approximately 30 kg via parcel service. Heavier items are shipped via freight carrier, or, in the case of large units, via direct delivery.
Please feel free to contact us if you have any special delivery requirements.

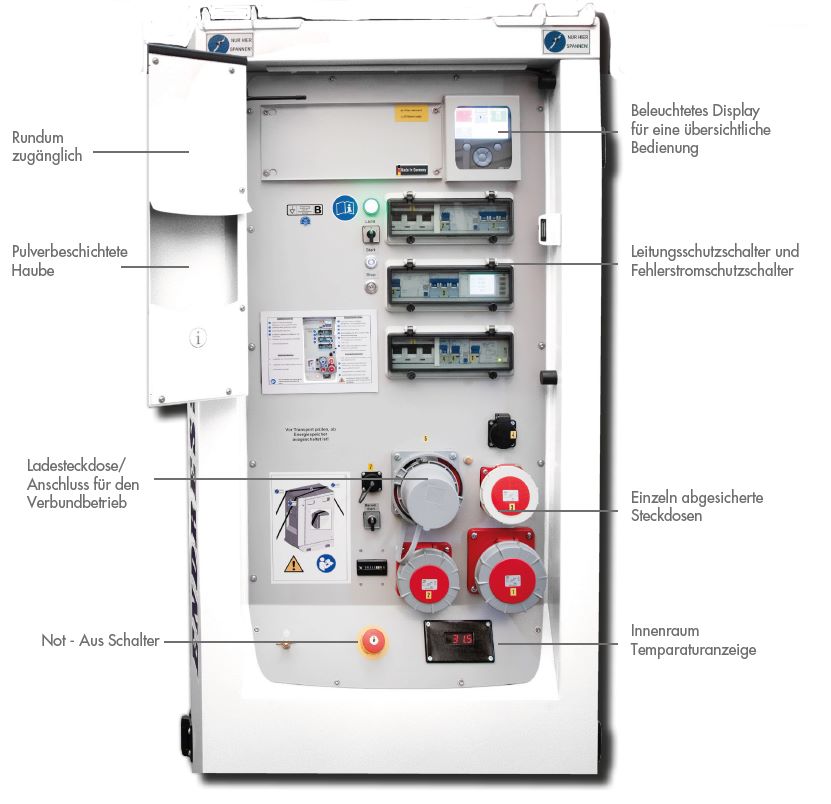

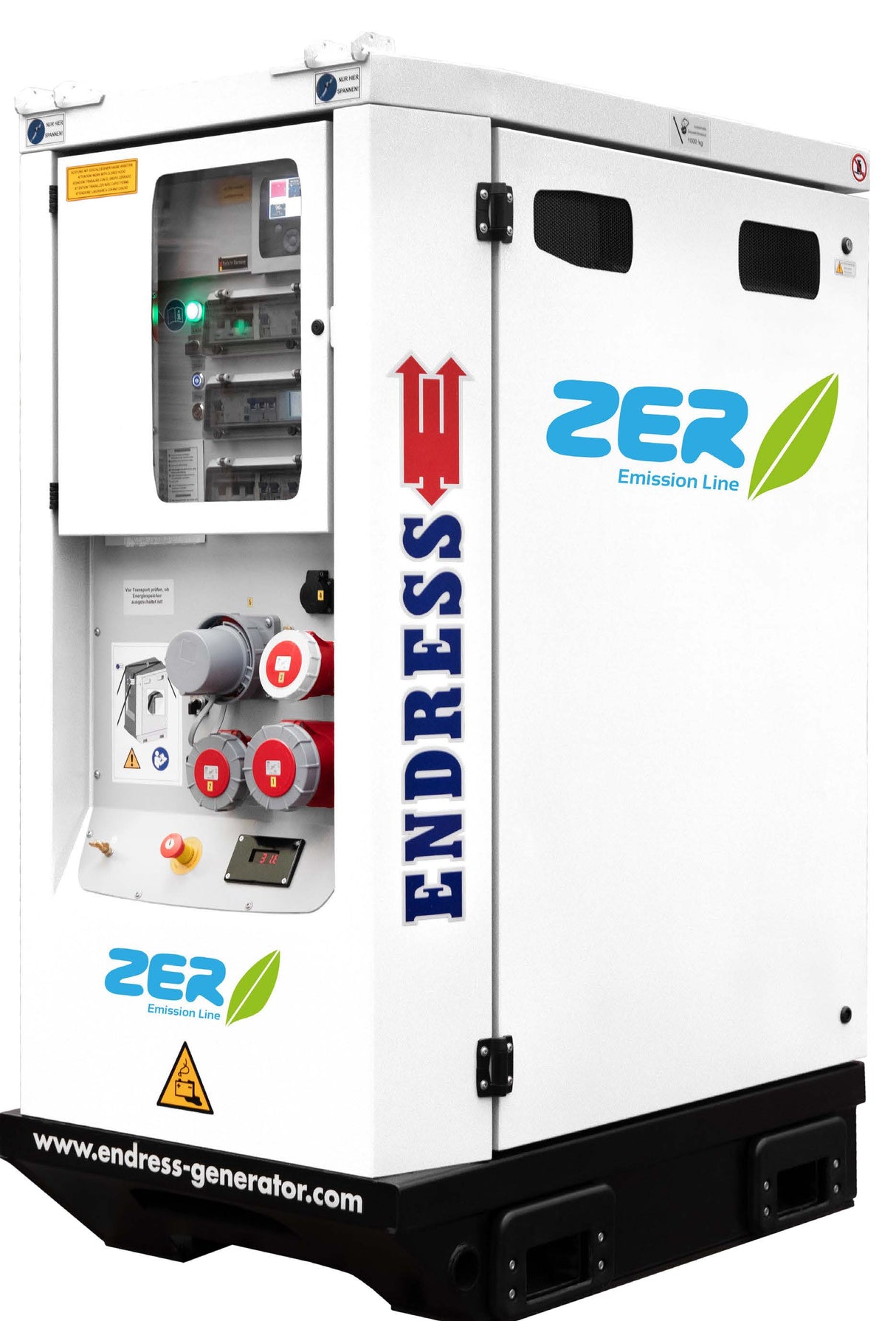

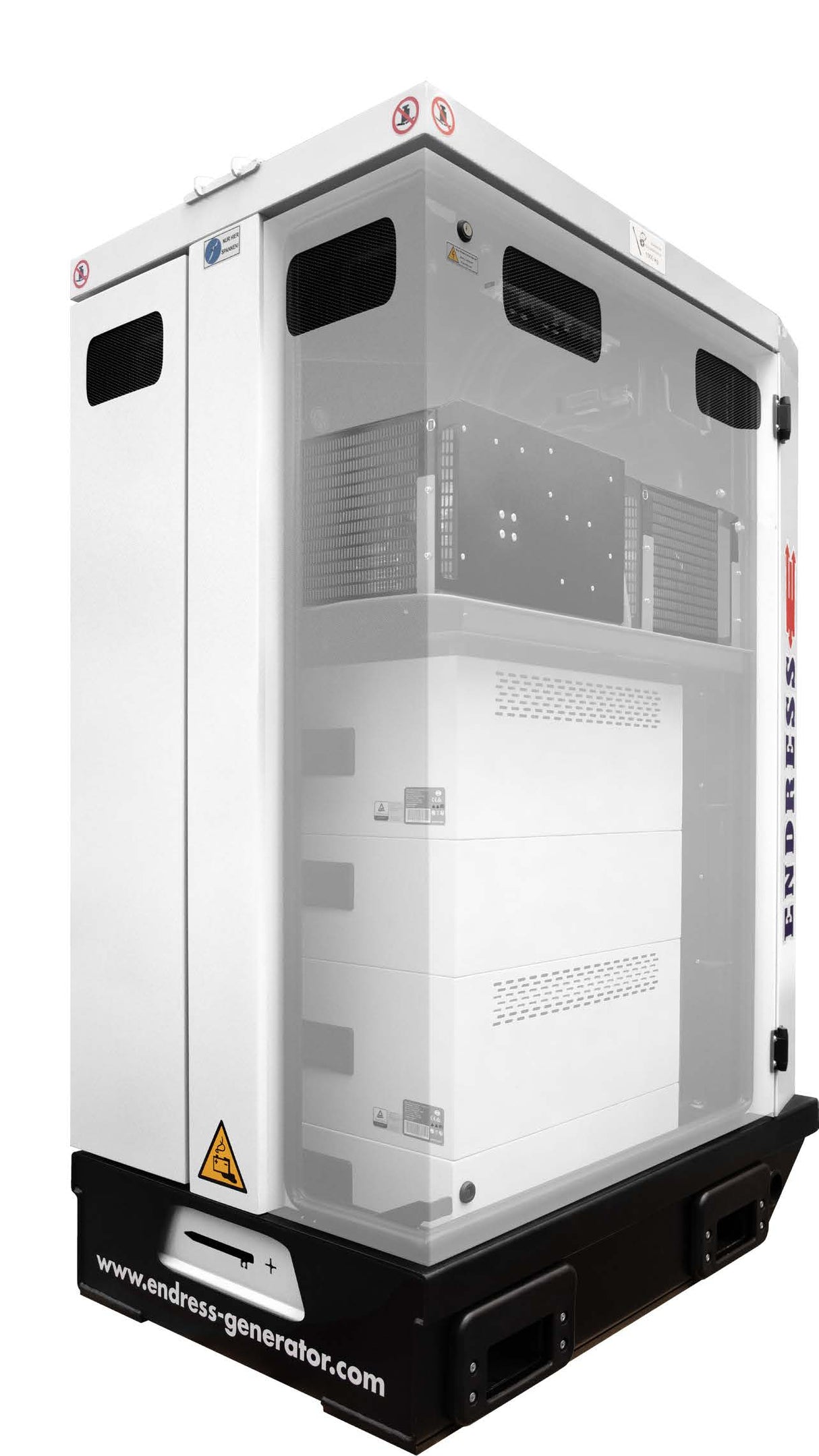

Rental unit energy storage ESS D 30/30
Technical specifications of the ESS 30/30 energy storage system:
|
Power section |
ESS D 30/30 |
|
|
Order No. |
610022 |
|
|
Rated power |
kVA |
30 |
|
Continuous power output at 25°C |
kVA |
22.5 |
|
Peak performance at 25°C |
kVA |
60 |
|
Nominal voltage |
V |
400/230 |
|
Output rated current in island operation |
A |
35 |
|
Output rated current in combination max. |
A |
125 |
|
Protection class |
IP |
54 |
|
Dimensions and weight |
||
|
Weight approx. |
kg |
900 |
|
Dimensions L x W x H |
mm |
1200 x 800 x 1750 |
|
Battery system |
||
|
Nominal capacity |
kWh |
30 |
|
Battery charging cycles |
6000 |
|
|
Operating temperature range |
°C |
-10 to +50 |
|
Charging time approx. |
h |
1.8 |
|
electrical outlets |
ESS D 30/30 |
|
Input socket |
CEE 400V/125A |
|
Output sockets |
2x 230V / 16A 1x CEE 400V / 32A 1x CEE 400V / 63A 1x CEE 400V / 125A |
