Rental unit energy storage SX 10/15

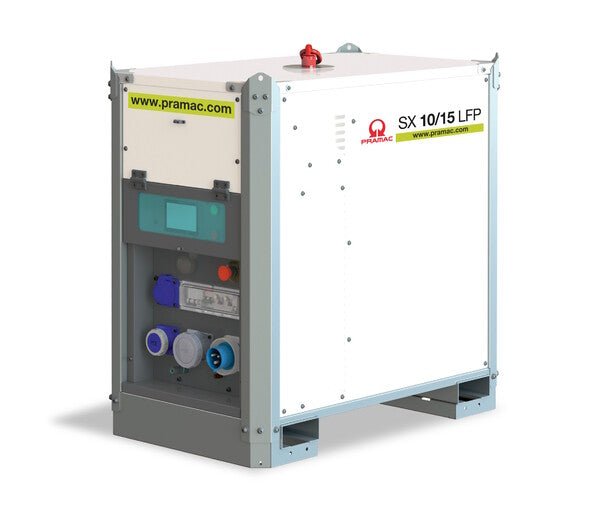

SX 10/15 LFP battery storage

Compact lithium energy storage system for mobile and stationary applications

The SX 10/15 LFP is a high-performance lithium iron phosphate energy storage system for off-grid power supply, hybrid energy systems, and mobile applications. It is ideally suited for use on construction sites, at events, or in combination with generator solutions.

Technical Highlights

• Usable capacity : 14.4 kWh

• Battery type : LiFePO₄ (Lithium iron phosphate)

• Nominal voltage : 51.2 V

• Maximum discharge power : up to 10 kW

• Lifespan : >6,000 cycles at 80% DoD

• Communication : CAN bus, Modbus TCP/IP

• Protection class : IP54

• Dimensions : 995 x 595 x 989 mm

• Weight : 330 kg

Special features

• Lithium-ion technology (LFP) : Long service life, high cycle stability and particularly safe operation – even under demanding environmental conditions.

• Integrated energy management : Control and monitoring via integrated BMS (Battery Management System) with communication to hybrid inverters and generator controls.

• High mobility : Compact design with optional transport solutions, ideal for temporary applications.

• Safe integration : Protection devices against overload, deep discharge, short circuit and overtemperature.

Typical applications

• Construction sites without mains power : Operation of tools, lights and office containers

• Events & functions : Provision of stage, lighting and sound equipment

• Remote locations : e.g., alpine huts, radio stations, or temporary installations
