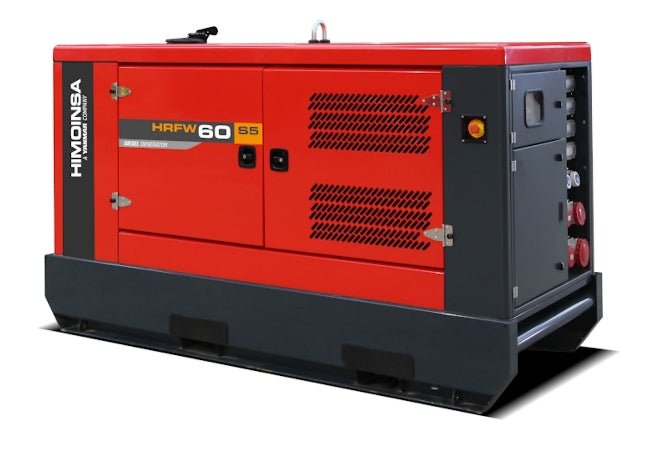

Rental device HIMOINSA HRFW-60 S5 RENTAL Line

HRFW-60 T5 S5

Engine specifications 1,500
Rated power: 54 prp; 54 standby
Manufacturer: FPT_IVECO
Model: F34.TEVP01
Engine type: Four-stroke diesel
Injection type: Direct
Intake type: Turbocharger
Cylinders, number and arrangement: 4 - L
Diameter x working stroke: 99 x 110
Total engine displacement: 3.4
Cooling system: Liquid (water + 50% glycol)
Specifications engine oil: ACEA E6, ACEA E9, API CJ-4
Compression ratio: 17:1
Fuel consumption in standby mode: 13.9
Fuel consumption 100% PRP: 13.9
Fuel consumption 70% PRP: 9.8
Fuel consumption 50% PRP: 7.2
Oil consumption under full load: 0.1% of fuel consumption
Total oil quantity (including hoses, filter) 9.5
Total coolant volume: 14.6
Regulator type: Mechanical
Dry type air filter
Diesel engines
four-stroke
Water-cooled
Electric starter 12V
Cooler with pressure fan
Filter separator (position not visible)
Mechanical control
Dry air filter
Protective devices for hot parts
Protective devices for moving parts

Three-phase generator
Pole: 4
Connection type (standard): Star - Series
Coupling type: S-3 11 1/2
Insulation protection class: Class H
Mechanical protection rating (according to IEC-34-5): IP23
Control system: Self-excited, brushless
Voltage regulator: AVR (Electronic)
Mounting type: Inset design
Clutch system: Flexible disc
Cover type: Standard (vacuum impregnation)

Electrical system
Electrical switchboard for control and circuit breakers, with measuring instruments and control center (depending on requirements and configuration)
Four-pole thermomagnetic circuit breaker
Adjustable differential protection (time-based and sensitivity-based), included as standard in the M5 and AS5 switchboards with thermomagnetic circuit breaker.
Battery charger (included in generator sets with automatic control panel)
Heating element (included as standard in units with automatic control panel)
Three-phase generator for charging batteries with grounding connection
Installed starter battery(ies) (including cable and mount)
Electrical grounding connection with designated connection for deep ground rod (deep ground rod not included in delivery)
Battery disconnect switch (optional)

Soundproofed version

• Steel housing

• Directory for radiator fill

• Pre-installation or wall niche to accommodate the quick-connect fittings for fuel transfer

• Leak-proof housing, designed to collect liquids (drip tray)

• Access for cleaning and draining the fuel tank

• Exhaust valve

• Vibration damper

• Fuel tank integrated into the housing

• Fuel level flow meter

• Aggregate box made of high-quality sheet metal

• High mechanical strength

• Low noise level

• Sound insulation based on high-density volcanic rock wool

• Surface powder-coated with epoxy polyester

• Full maintenance access (water, oil and filters without removing the convertible top)

• Oil drain kit, oil pan

• Filling the fuel tank from the outside using a safety key

• Emergency stop switch (double protection through emergency shutdown inside the control box + outside on the generator box)

• Mechanically processed for the output of power cables

• Door with window for viewing control panel, alarm messages and measured values

• Snap closures

Plant data
EXHAUST SYSTEM
Maximum exhaust gas operating temperature: 760

Maximum permissible back pressure: 220 mbar
Exhaust pipe outer diameter: 90


REQUIRED AIR VOLUME
Maximum airflow for combustion: 193.3
Airflow fan motor: 1
Airflow fan three-phase generator: 0.216

COMMISSIONING SYSTEM
Starting power: 4.2
Starting power: 5.71
Auxiliary voltage: 12

FUEL PLANT
Fuel type: Diesel
Fuel tank: 216

Dimensions
Length: 2,660
Height: 1,600
Width: 1,110
Maximum packaging volume: 4.72
Weight including fluids in radiator and oil pan: 1,690
Tank capacity: 216
Autonomy: 16 hours
Sound level: 62
