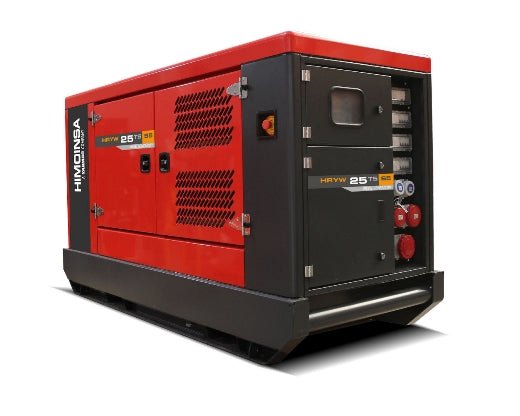

Rental device HIMOINSA HRYW-25 T5 S5 RENTAL Line

HRYW - 25 T5 S5

Engine specifications 1,500

Rated power: 17.7 kW prp; 19.6 kW standby
Manufacturer: YANMAR
Model: 4TNV86CTIHR
Engine type: Four-stroke diesel
Injection type: Direct
Intake type: Turbocharger
Diameter x working path: 84 x 90
Total engine displacement: 1.091
Cooling system: Coolant
Engine oil specifications: SAE 3 class 10W30 / API grade CD,CF
Compression ratio: 19.2
Fuel consumption in standby mode: 6.08

Maximum oil quantity: 7.4
Total coolant volume: 5.8

Regulator type: Mechanical
Dry type air filter
Diesel engines
four-stroke
Water-cooled
Electric starter 12V
Cooler with pressure fan
Mechanical control
Dry air filter
Protective devices for hot parts
Protective devices for moving parts

Three-phase generator

Pole: 4

Mecc Alte ECP28.L4C

Connection type (standard): Star - Series
Coupling type: S-4 7.5"
Insulation protection class: Class H
Mechanical protection rating (according to IEC-34-5): IP23
Control system: Self-excited, brushless
Voltage regulator: AVR (Electronic)
Mounting type: Inset design
Clutch system: Flexible disc
Cover type: Standard (vacuum impregnation)

Electrical system

Control panel M5 with electronic control unit CEM7 and switched emergency shutdown
Four-pole thermomagnetic circuit breaker
Adjustable differential protection (time-based and sensitivity-based), included as standard in the M5 and AS5 switchboards with thermomagnetic circuit breaker.
Battery charger (included in generator sets with automatic control panel)
Heating element (included as standard in units with automatic control panel)
Three-phase generator for charging batteries with grounding connection
Installed starter battery(ies) (including cable and mount)
Electrical grounding connection with designated connection for deep ground rod (deep ground rod not included in delivery)
Battery disconnect switch (optional)

Soundproofed version

steel housing

Vibration damper
Fuel tank integrated into the housing
Flow timer fuel level
Emergency stop switch
Aggregate box made of high-quality sheet metal
High mechanical load capacity
Low noise level
Sound insulation based on high-density volcanic rock wool
Surface powder-coated with epoxy polyester (salt spray test of over 1000 hours)
Full maintenance access (water, oil and filter without removing the convertible top)
Reinforced lifting hooks for lifting with a crane
Hermetic housing (double-walled design to contain liquids)
Drainage cap tank
Drainage closure housing
Housing designed for the installation of a mobile set
High-performance steel silencer with -35db(A)
Fuel transfer pump (optional)

Data of the system EXHAUST SYSTEM

Maximum exhaust gas operating temperature: 450°C
Exhaust gas flow rate during operation: 5.36 m³/min
Maximum permissible back pressure: 1300 mmH2o

REQUIRED AIR VOLUME

Maximum air flow rate for combustion: 122.32 m³/h
Airflow from fan motor: 0.987 m³/h
Airflow from fan/three-phase generator: 0.11 m³/h

COMMISSIONING SYSTEM

Starting power: 1.7 kW
Starting power: 2.31 CV
Recommended battery: 60 Ah
Auxiliary voltage: 12 V

FUEL PLANT

Fuel type: Diesel
Fuel tank: 85

Dimensions

Length: 2,150
Altitude: 1,410
Width: 950
Maximum packaging volume: 2.88
Weight including fluids in radiator and oil pan: 995
Tank capacity: 85
