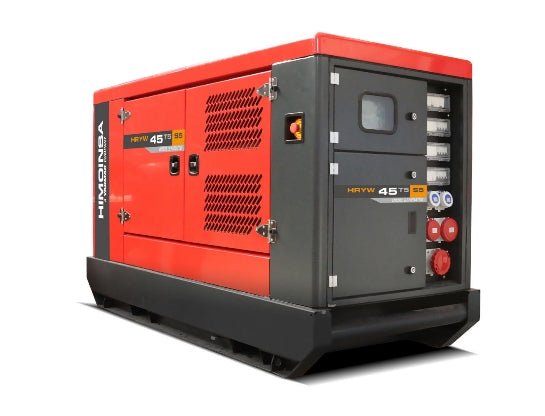

Rental device HIMOINSA HRYW-45 T5 S5 RENTAL Line

HRYW - 45 T5 S5

Engine specifications 1,500
Rated power: 39.6 prp; 43.7 standby
Manufacturer: YANMAR
Model: 4TNV98CTIHR
Engine type: Four-stroke diesel
Injection type: Direct
Intake type: Turbocharger
Cylinders, number and arrangement: 4 - L
Diameter x working stroke: 98 x 110
Total engine displacement: 3.319
Cooling system: Coolant
Engine oil specifications: API CJ-4, ACEA E6
Compression ratio: 18.1
Fuel consumption in standby mode: 11.65
Fuel consumption 100% PRP: 10.13
Fuel consumption 75% PRP: 7.04
Fuel consumption 50% PRP: 5.6
Oil consumption under full load: 0.27
Maximum oil quantity: 10.5
Total coolant volume: 4.5
Electronic controller
Dry type air filter
Inner diameter of exhaust pipe outlet: 45
Diesel engines
four-stroke
Water-cooled
Electric starter 12V
Cooler with pressure fan
Filter separator (position visible)
Electronic control
Dry air filter
Protective devices for hot parts
Protective devices for moving parts

Three-phase generator
Pole: 4
Connection type (standard): Star - Series
Coupling type: S-3 11 1/2
Insulation protection class: Class H
Mechanical protection rating (according to IEC-34-5): IP23
Control system: Self-excited, brushless
Voltage regulator: AVR (Electronic)
Mounting type: Inset design
Clutch system: Flexible disc
Cover type: Standard (vacuum impregnation)

Electrical system
Electrical switchboard for control and circuit breakers, with measuring instruments and control center (depending on requirements and configuration)
Four-pole thermomagnetic circuit breaker
Adjustable differential protection (time-based and sensitivity-based), included as standard in the M5 and AS5 switchboards with thermomagnetic circuit breaker.
Battery charger (included in generator sets with automatic control panel)
Heating element (included as standard in units with automatic control panel)
Three-phase generator for charging batteries with grounding connection
Installed starter battery(ies) (including cable and mount)
Electrical grounding connection with designated connection for deep ground rod (deep ground rod not included in delivery)
Battery disconnect switch (optional)

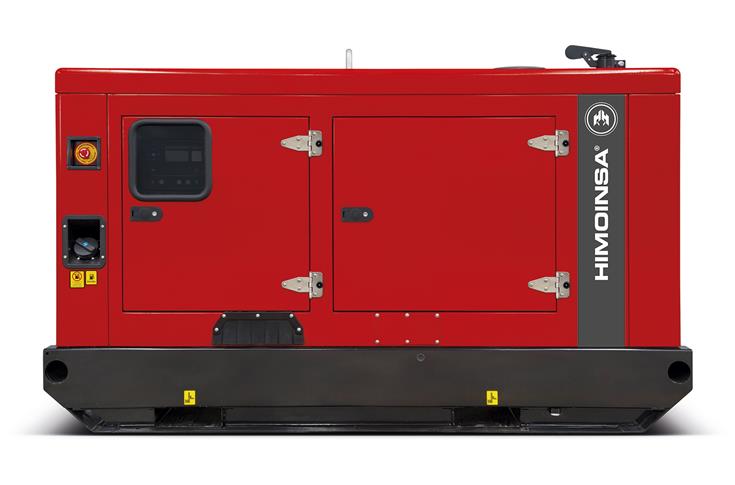

Soundproofed version

• Steel housing

• Directory for radiator fill

• Pre-installation or wall niche to accommodate the quick-connect fittings for fuel transfer

• Leak-proof housing, designed to collect liquids (drip tray)

• Access for cleaning and draining the fuel tank

• Access points for cleaning the housing

• Housing to protect the generator box is oversized

• Towing rail and forklift pockets for transport by forklift

• Exhaust valve

• Vibration damper

• Fuel tank integrated into the housing

• Fuel level flow meter

• Emergency stop switch

• Aggregate box made of high-quality sheet metal

• High mechanical strength

• Low noise level

• Sound insulation based on high-density volcanic rock wool

• Surface powder-coated with epoxy polyester

• Full maintenance access (water, oil and filters without removing the convertible top)

• Reinforced lifting hooks for lifting with a crane

• High-performance steel silencer with -35dB(A)

• Oil drain kit, oil pan

• Versatile options for mounting large enclosures with metal tanks

• Emergency stop switch (double protection through emergency shutdown inside the control box + outside on the generator box)

• Mechanically processed for the output of power cables

• Door with window for viewing control panel, alarm messages and measured values

• Snap closures

• Three-way valve for transferring fuel (available with 1/2" and 3/8" connections) (Optional).

• Fuel transfer pump (Optional).

Plant data
EXHAUST SYSTEM
Maximum exhaust gas operating temperature: 480
Exhaust gas flow rate during operation: 10.69
Maximum permissible back pressure: 1000
Exhaust pipe outer diameter: 90

REQUIRED AIR VOLUME
Maximum airflow for combustion: 194.16
Airflow fan motor: 1,176
Airflow from fan to three-phase generator: 0.176

COMMISSIONING SYSTEM
Starting power: 2.3
Starting power: 3.13
Recommended battery: 60
Auxiliary voltage: 12

FUEL PLANT
Fuel type: Diesel
Fuel tank: 110
Other fuel tank values: 190

Dimensions
Length: 2,350
Height: 1,450
Width: 1,110
Maximum packaging volume: 3.78
Weight including fluids in radiator and oil pan: 1255
Tank capacity: 110
Autonomy: 11 hours
Sound level: 64
