Emergency generator PRAMAC GPW45Y/FS5 - RENTAL
Emergency generator PRAMAC GPW45Y/FS5 - RENTAL is not in stock and will be shipped as soon as available again.
Delivery time: approx. 20 weeks
Collection possible from warehouse Fabrikstr. 1
Collection date after consultation
Questions to the product?
Questions to the product?
Shipping Information
Shipping Information
Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).
We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.
Please contact us if you have special delivery requirements.

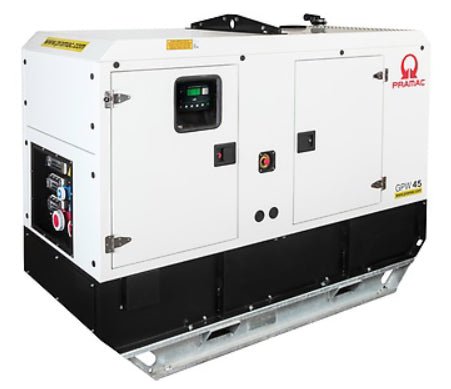

PRAMAC · DIESEL · PROFESSIONAL GENERATOR
PRAMAC GPW45Y/FS5 - RENTAL
Three-phase PRAMAC diesel generator with 47.5 kVA maximum output, 43.0 kVA prime power (34.4 kW), Yanmar 4TNV98CT- IPGE engine, electric start, AVR voltage regulation and 400/230 V output. Fuel tank 80 L, net weight 883 kg, model-specific sockets Steckdosen: 1x CEE 400V 16A, 1x CEE 400V 32A, 1x CEE 400V 63A, 1 x 230V SCHUKO.
Key specifications
Diesel power for professional applications
PRAMAC GPW45Y/FS5 - RENTAL is designed for appropriately rated commercial electrical loads. Prime power and maximum ratings must be interpreted according to the operating instructions and actual load profile.
Features and equipment
Model-specific engine.
Maximum LTP rating.
Prime power rating.
Prime power in kW.
Voltage regulation.
Fuel tank capacity.
Three-phase voltage.
Net weight.
Technical highlights – explained
Understanding LTP and PRP
47.5 kVA is the maximum LTP rating; 43.0 kVA (34.4 kW) is the stated prime power. Check load profile and manufacturer operating definitions.
Three-phase load distribution
Total three-phase output cannot be drawn from an individual 230 V connection. Observe current limits and balanced phase loading.
Sockets and protection
Sockets listed: Steckdosen: 1x CEE 400V 16A, 1x CEE 400V 32A, 1x CEE 400V 63A, 1 x 230V SCHUKO. Electrical protection must match the actual configuration.
Engine and operation
Yanmar 4TNV98CT- IPGE diesel engine, fuel tank 80 L. Follow the engine manual for fuel, service and operating requirements.
Building connection
Building backup power requires qualified design of isolation, switching, earthing and personnel protection. Do not assume universal compatibility.
Suitable applications
Construction and rental
Site requirements, output and protection must be checked.
Industrial temporary loads
Site requirements, output and protection must be checked.
Commercial operations
Site requirements, output and protection must be checked.
Technical specifications
Engine
| Engine | Yanmar 4TNV98CT- IPGE |
|---|---|
| Fuel | Diesel |
| Starting system | Elektrostart |
| Cooling | Kühlflüssigkeit |
| Speed | 1500 U/min |
Alternator and regulation
| Alternator manufacturer | MeccAlte |
|---|---|
| Voltage regulation | AVR |
| IP rating | IP23 |
Output ratings
| Maximum LTP | 47.5 kVA |
|---|---|
| Prime power PRP | 43.0 kVA |
| Prime power PRP kW | 34.4 kW |
| Voltage | 400/230 V |
| Frequency | 50 Hz |
Fuel tank and operation
| Tank | 80 L |
|---|---|
| Fuel | Diesel |
| Sound pressure at 7m | 61 |
Sockets
| Connections | Steckdosen: 1x CEE 400V 16A, 1x CEE 400V 32A, 1x CEE 400V 63A, 1 x 230V SCHUKO |
|---|
Dimensions and weight
| Dimensions | 220 x 102 x 142 |
|---|---|
| Net weight | 883 kg |
Other specifications
| Equipment listed | Voltmeter;Wattmeter;Frequenzanzeige;Kraftstoffanzeige;Betriebsstundenzähler;Ölmangelabschaltung;Überlastschutz;Notstromautomatik |
|---|---|
| Protection listed | FI-Schutzschalter |
| Emission class | Stage 5 |
Frequently asked questions
What is the prime power?
43.0 kVA PRP.
What is maximum power?
47.5 kVA LTP.
What sockets are listed?
Steckdosen: 1x CEE 400V 16A, 1x CEE 400V 32A, 1x CEE 400V 63A, 1 x 230V SCHUKO
May it power a building?
Only with qualified electrical planning, a suitable transfer switch and protective measures.
Are optional accessories included?
Only if explicitly included in the selected model or offer.
Equipment and options
Verify actual equipment and available options against the model and the offer. Optional features are not automatically included.
PRAMAC generators – SEV advice
We support correct selection of output, connections and protection.
