HIMOINSA HRYW-45 T5 S5 – Rental Line
HIMOINSA · RENTAL Line · Diesel · Stage V
HIMOINSA HRYW-45 T5 S5 RENTAL Line

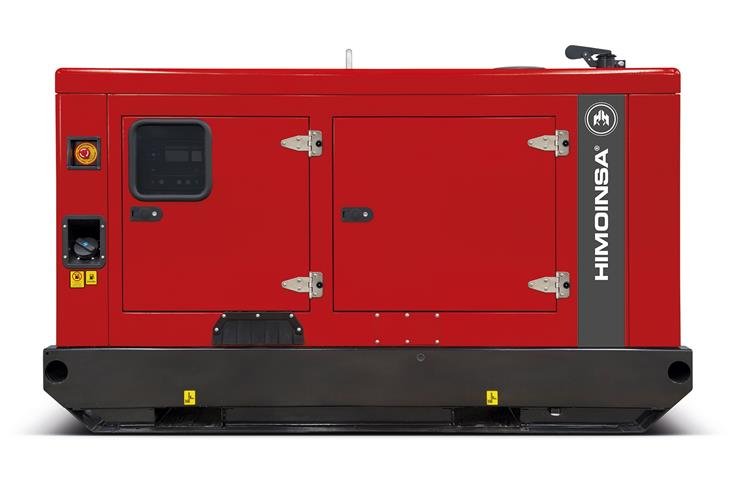

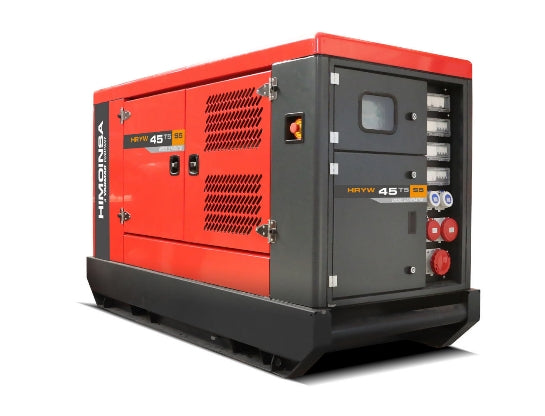

The HIMOINSA HRYW-45 T5 S5 is a soundproofed, three-phase Stage V diesel generator for mobile construction, rental and event power. It supplies 43 kVA / 35 kW prime power (PRP) and 48 kVA / 38 kW emergency standby power (ESP). The liquid-cooled YANMAR 4TNV98CTIHR engine operates at 1,500 rpm and drives a MECC ALTE ECP32.2S4C alternator regulated by electronic AVR. The 110-litre diesel tank supports changing mobile applications.
Key specifications
Advantages and equipment
Suitable applications
The HIMOINSA HRYW-45 T5 S5 can be used for larger construction-site loads, temporary event infrastructure and hire fleets. Load calculation, cable sizing, switchgear, residual-current protection and earthing must be designed for each installation.
Mobile diesel generator HIMOINSA HRYW-45 T5 S5 for construction and rental
A mobile diesel generating set should be selected by its real PRP rating rather than its model designation alone. This version supplies 43 kVA PRP with 48 kVA ESP for the specified standby conditions. Motor starting currents and phase imbalance should be assessed when operating pumps and other three-phase loads.
Technical highlights
Planning and technical notes
PRP and ESP: Prime power is the manufacturer's rating for the defined duty profile and variable loads. ESP is only applicable when quoted for that exact variant, and is not unrestricted continuous power.
Connectors and safety: Socket configurations are dependent on the control panel. The final scope, protective devices and outlet capacities must be checked against the order specification.
Building standby installations: Supply to fixed installations requires an interlocked, correctly rated changeover arrangement with safe separation from the utility grid. Earthing and personnel protection must be designed by a qualified electrician.
Technical specifications
Planning temporary or standby power?
SEV can help you size the generating set, select the outlets and controls, and plan a suitable connection and safety concept.
-
