Pylontech Force H3 Battery Storage Module 5.12 kWh

Pylontech Force H3 Battery Module FH10050 – 5.12 kWh High-Voltage Storage

The Pylontech Force H3 Battery Module FH10050 is a powerful high-voltage storage module with 5.12 kWh capacity and forms the basis for modular energy storage systems of the Force H3 series. In combination with the appropriate BMS (FC1000), flexible and scalable storage solutions can be realized for residential, commercial, and industrial applications.

Modern lithium iron phosphate (LiFePO₄) technology ensures high safety, long service life, and reliable performance even with intensive use.

Technical Data

• Model: FH10050
• Battery Type: High-voltage Lithium Iron Phosphate (LiFePO₄)
• Nominal Voltage: 102.4 V
• Capacity: 5.12 kWh
• Usable Capacity: approx. 4.84 kWh
• Depth of Discharge: up to 95 %
• Dimensions (W × D × H): 540 × 350 × 530 mm
• Weight: approx. 46 kg
• Communication: Modbus RTU / CAN
• Protection Class: IP55
• Operating Temperature: –10 °C to +55 °C
• Cycle Life: over 8,000 charge cycles at 25 °C
• Certifications: IEC 62619, IEC 63056, UL 1973, UN 38.3, VDE-AR-E 2510-50

Advantages at a glance

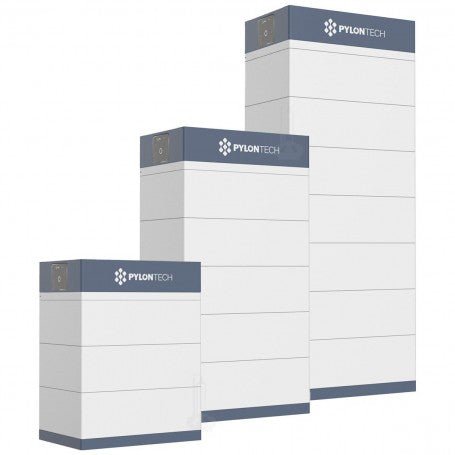

• Modularly Scalable: Combination of 2 to 7 modules per tower for flexible storage sizes
• High Energy Density: 5.12 kWh per module in a compact design
• Long Service Life: Over 8,000 cycles for economical long-term use
• Safe Cell Technology: LiFePO₄ without cobalt – thermally stable and maintenance-free
• Easy Installation: Stackable system with a clearly structured design
• Expandable: Multiple systems can be combined in parallel for larger projects

Typical Applications

• Photovoltaic systems in single-family homes
• Commercial storage solutions with growing energy needs
• Systems for self-consumption optimization
• Emergency power and backup applications
• Off-grid and hybrid solutions

The Pylontech Force H3 Battery Module FH10050 is the ideal basis for powerful and flexibly expandable high-voltage storage systems. It allows for precise adaptation of storage capacity to the respective requirements and offers a reliable solution for modern energy systems with high demands on safety and efficiency.

Please refer to the compatibility list for inverters.

This product is considered a storage unit for photovoltaic systems and is therefore tax-exempt according to UstG §12 Paragraph 3 since January 1, 2023. The tax exemption will be correctly shown in the shopping cart and on the invoice. This tax exemption only applies to private customers with their main residence in Germany.

If you are a private customer from Germany and use the item as a storage unit for a solar system, please select the "Reduced VAT rate 0%" option
