Yorking | SKU: SEV-00078

Power generator YORKING YDY 385 S3

Name: Power generator YORKING YDY 385 S3
Brand: Yorking
SKU: SEV-00078
Price: 42364.0 EUR
Availability: InStock

€42.364,00 ~~€58.072,00~~

VAT included. Shipping will be calculated at checkout.

Power generator YORKING YDY 385 S3 is not in stock and will be shipped as soon as available again.

Delivery time: approx. 12 weeks

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

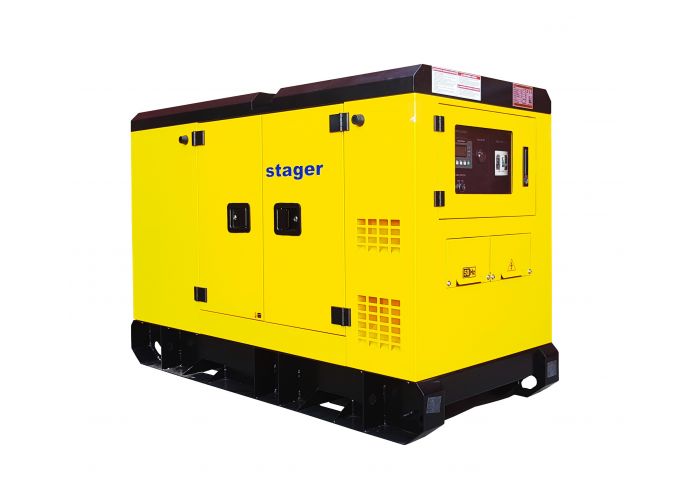

Diesel power generator, 3-phase 230 volts / 400 volts, Super Silent (closed, noise-insulating housing), motor YM6S9L-D119BEF-U2, max. power 385 kVA, nominal power (POWER) 350 kVA, low oil level alarm, electric starter, New AVR (Automatic Voltage Regulator) ensures automatically regulated output voltage, digital control panel, water cooling, 6 cylinders, 4 doors with 180° opening for better maintenance, engine speed 1,500 rpm, high-quality digital control with engine monitoring, modern diesel technology, 2 Schuko sockets 230 volts, 400 volts terminal strip, (English operating instructions), weight: approx. 4000 kg

 ATS Box 1 (automatic emergency power switch) available on request

Phases		3-phase
Frequency	Hz	50
Output voltage AC	Volts	230 / 400 volts
Output current	AC A	505 A
Rated power	kVA	350
Maximum performance	kVA	385
Motor speed	RPM	1500
Power factor	Cos Φ	0.8
Number of poles		4
AVR (Automatic Voltage Regulator)		Yes

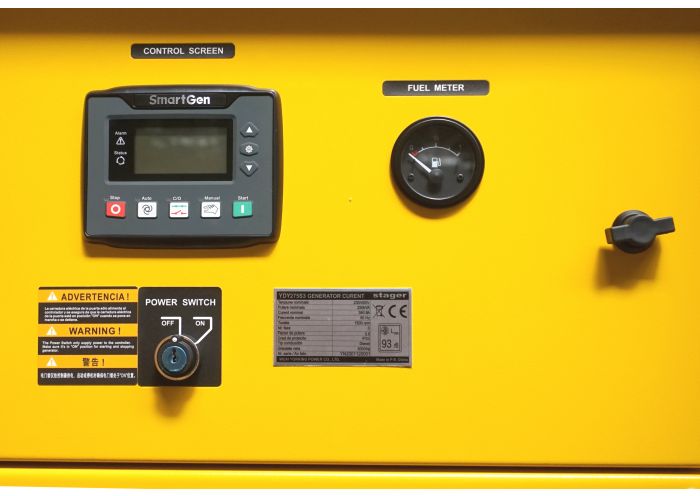

Operation		Digital control unit
ATS (automatic emergency power system)		on request
Generator	YORKING	YK444E
Excitation system		single bearing, AVR, brushless
Isolation	Class	H
Housing version		Ultra-Silent (closed, noise-insulating housing
Fuel tank volume	Liters	660
Runtime at 75% load		10.3 hours
Noise level	dbA (7m)	93
Weight	Kg	4000
Dimensions (L x W x H)	mm	4300 x 1500 x 2050
Start system		electric
Starter		DC 24V, 11 kW
Battery (maintenance-free)		24V 80 Ah
Engine oil		SAE10W30
DIESEL ENGINE	YTO	YM6S9L-D119BEF-U2
Cycle x cylinder		4 X 6 in line
Cooling system		Water
Diameter x stroke		126 x 155 mm
Displacement	ccm	11.596
Motor power	KW/rpm	352 / 1,500
