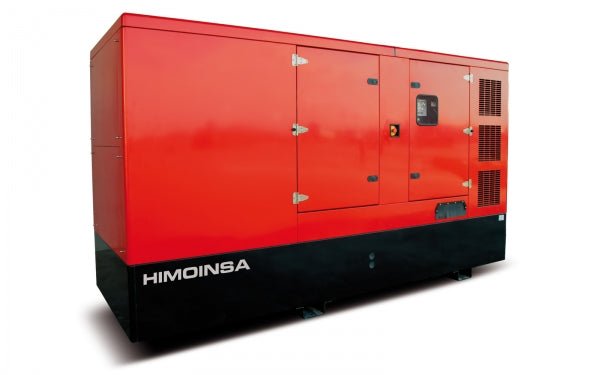

Power generator HIMOINSA HFW-250 T5 IVECO

HFW-250 T5

Rated power: 185.5 cop ; 232 pp ; 256 standby
Manufacturer: FPT_IVECO
Model: C87 TE3F
Engine type: Diesel four-stroke
Art of injection: Direct, Common Rail
Type of intake: With turbocharger and aftercooling
Cylinder, number and arrangement: 6 - L
Diameter x travel: 117 x 135
Total displacement: 8.7
Cooling system: liquid (water + 50% glycol)
Specifications Engine oil: ACEA E3 - E5
Compression ratio: 16.5:1
Fuel consumption standby mode: 65.5
Fuel consumption 100% PRP: 61
Fuel consumption 80% PRP: 55
Fuel consumption 50% PRP: 35.7
Oil consumption under full load : 0.2% of fuel consumption
Total amount of oil (including hoses, filter) 28
Total amount of coolant: 63
Regulator type electronic
Air filter type dry
Diesel engines
Four-stroke engine
Water-cooled
Electric starting device 24V
Cooler with pressure fan
Filter separator (stand not visible)
Electronic control
HWT indicator
NOD indicator
Water level sensor, radiator
Dry air filter
Protective devices for hot Parts
Protection devices for moving parts

Pole: 4
Connection type (standard): Star - series
Coupling type: S-1 14"Insulation protection class: Class H
Mechanical protection class (according to IEC-34-5): IP23
Control system: self-excited, without brushesVoltage regulator: A.V.R.(Electronic)
Type of holder: Single bearing version
Clutch system: Flexible disc
Type of cover: Standard (vacuum impregnation)

Electrical control panel and circuit breaker, with measuring devices and control center (according to requirements and configuration)
Four-pole thermomagnetic circuit breaker
Battery disconnect switch
Adjustable differential protection (time and sensitivity), included as standard in the M5 and AS5 panels with thermomagnetic circuit breaker
Battery charger (included in units with automatic panel)
Heating resistor (included as standard in units with automatic control panel)
Alternator for charging batteries with earth connection
Installed starter battery(s) (including cable and Recording)
Electrical grounding connection with connection provided for deep earth electrode (depth earth electrode not included in delivery)

Steel housing
Oil drain set for oil pan
Versatile options when assembling large housings with metal tank
Vibration damper
Fuel tank
Flow timer fuel level
Emergency stop switch
Aggregate box made of high quality Sheet metal
High mechanical strength
Low noise level
Sound insulation based on high-density volcanic rock wool
Surface with Epoxy polyester powder coated (salt spray test of over 1000h)
Full maintenance access (water, oil and filters without removing the top)
Reinforced lifting hooks for lifting with crane
Hermetic housing (double wall function for collecting liquids)
Drainage closure tank
Drainage closure housing
Housing for the installation of a mobile kit is provided
High performance steel silencer with -35db(A)
Three-way valve for transferring the fuel (available with 1/2" and 3/8 " connections) Optional
Fuel transfer pump Optional

Maximum temperature exhaust gas operation: 488
Maximum permissible back pressure: 5
Outer diameter of the exhaust pipe: 140
Heat dissipation through exhaust pipe: 650

Maximum air flow for combustion: 1025
Air flow fan motor: 5.1
Air flow fan alternator: 0.58

Starting power: 5
Starting power: 6.8
Recommended battery: 120 x 2
Auxiliary voltage: 24

Fuel type: Diesel
Fuel tank: 449
Other fuel tank values: 999

Length: 3,800
Height: 2,290
Width: 1,400
Maximum packaging volume: 12, 18
Weight with fluids in radiator and oil pan: 3.531
Capacity tank: 449
Autonomy: 8 hours
Sound level: 68
