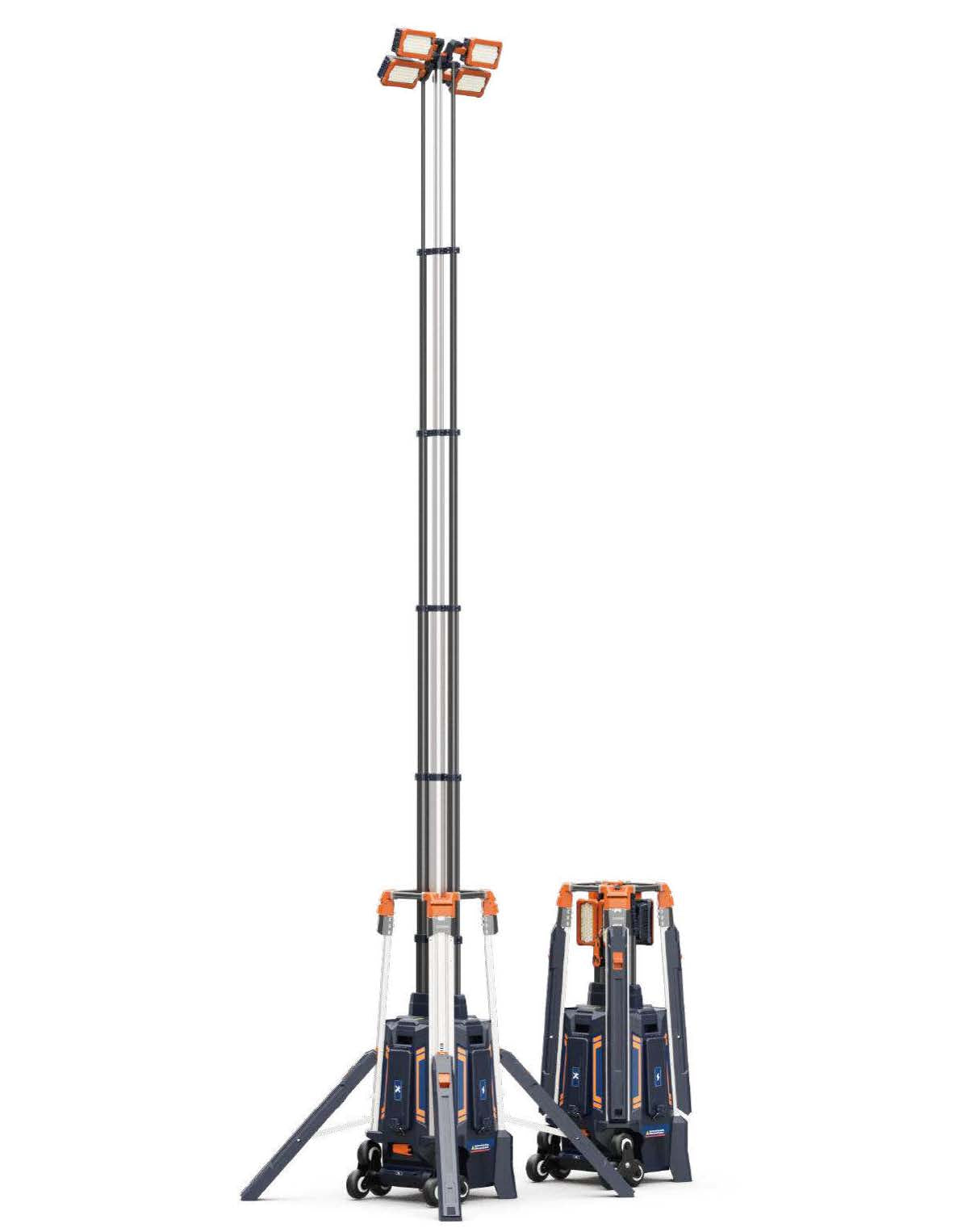

Lichtmast LYS TL-500, 4,2m
LYS POWER · PORTABLE LED LIGHT TOWERS
LYS TL-500 (4,2 m) – 33,000 lm LED Light Tower
The LYS Power TL-500 (4,2 m) is a portable LED light tower for construction, emergency services, maintenance and events, delivering up to 33,000 lumens on battery or 62,000 lumens with an optional AC driver. It reaches 4.2 m and weighs 50 kg without batteries. four individually adjustable high-output LEDs; rated IP65.
Key specifications
Professional LED lighting for worksites
Unlike an engine-driven tower, the TL-500 (4,2 m) can light suitable work areas without a local running combustion engine. Its four individually adjustable high-output LEDs provide high-output adjustable LEDs with electric lift. The portable design can be handled or positioned by one person subject to safe handling limits.
Maximum working height is 4.2 m. Electric telescopic mast, triple-wheel chassis, self-locking legs, two-axis levelling and USB-A/USB-C 5 V/2 A. Power options: D24-500 batteries or optional 100–277 V AC driver, with 3 × D24-500 for reference runtime as the reference battery configuration. Confirm batteries and AC driver in ordered package.
Four battery stages: Eco 2,800, Balanced 9,500, Standard 17,000, Turbo 33,000 lm. Stepless AC up to 62,000 lm. Store states wind force 8; one runtime source lists >20 h Standard, another approx. 18 h. Single-operator wheeled transport and uneven ground support. All stated runtimes and lighting areas depend on specified battery, light-level and operating conditions.
Benefits and features
33,000 lm on battery, up to 62,000 lm on optional AC.
Electric telescopic mast, triple-wheel chassis, self-locking legs, two-axis levelling and USB-A/USB-C 5 V/2 A
high-output adjustable LEDs with electric lift
Battery power without a petrol or diesel engine on site.
IP65
3 × D24-500 for reference runtime
50 kg · 4.2 m
four individually adjustable high-output LEDs
Technical highlights and practical guidance
LED design and beam pattern
The TL-500 (4,2 m) provides up to 33,000 lm on battery or 62,000 lm using an optional AC driver. four individually adjustable high-output LEDs. Actual site lighting also depends on beam angle, uniformity and required workplace illuminance in lux.
Battery packs and AC supply
Reference performance uses 3 × D24-500 for reference runtime. D24-500 batteries or optional 100–277 V AC driver. Confirm batteries and AC driver in ordered package. Higher mains output requires a correctly matched AC driver and electrical connections.
Eco, Standard and Turbo runtime
Indicative figures vary by brightness and battery arrangement: Eco around 100 h or more at reduced brightness, Standard approx. 18 to over 20 h depending on document revision, Turbo approx. 10 h at 33,000 lm. Values may differ between documentation revisions. Accurate planning requires battery quantity, temperature and required brightness.
Transport and safe positioning
The tower weighs 50 kg without batteries. Electric telescopic mast, triple-wheel chassis, self-locking legs, two-axis levelling and USB-A/USB-C 5 V/2 A. Positioning must take account of ground strength, locked supports, wind and actual mast extension.
IP protection and connections
The unit carries an IP65 rating. Follow the operating manual in rain or dust. Chargers, connectors and external AC drivers can have different ratings; the tower's IP code does not automatically apply to accessories.
What's in the package
Confirm batteries and AC driver in ordered package. Select compatible D24 batteries, battery chargers and, where relevant, an AC driver matched to the particular product version.
Suitable applications
LED lighting for suitable work zones, paths and repairs.
Light incident scenes, staging and equipment zones.
Portable lighting for inspection and maintenance.
Temporary work illumination for industrial and utility sites.
Lighting for access, setup work and suitable outdoor spaces.
Battery operation without local engine exhaust and with safe support.
Battery runtime and brightness level
Reference figures with 3 × D24-500 for reference runtime: Eco around 100 h or more at reduced brightness, Standard approx. 18 to over 20 h depending on document revision, Turbo approx. 10 h at 33,000 lm. Actual runtime depends on brightness, the number and condition of battery packs, temperature and model revision.
Technical specifications
Frequently asked questions
What is the maximum brightness?
Up to 33,000 lm on battery or 62,000 lm with optional AC power.
Is the battery included?
Confirm batteries and AC driver in ordered package.
What runtime can I expect?
Eco: around 100 h or more at reduced brightness; Standard: approx. 18 to over 20 h depending on document revision; Turbo: approx. 10 h at 33,000 lm. Depends on battery and operating conditions.
Can I connect the tower to mains?
Yes, with a compatible separately supplied AC driver.
How high is the mast?
4.2 m
Is it weather-resistant?
Yes, the tower is listed as IP65; observe stable mounting and accessory ratings.
How do TL and PL towers differ?
TL heads favour directional lighting; PL petal panels offer wider surrounding coverage.
Which batteries are needed?
3 × D24-500 for reference runtime
Accessories and related LYS towers
For TL-500 variants, request D24-500 packs, an appropriate AC driver, chargers and optional solar accessories. Do not assume D24-100 equipment is interchangeable.
Choose the right lighting tower
We advise on mast height, light distribution, compatible battery packs and accessories for construction, emergency services, industry and events.
