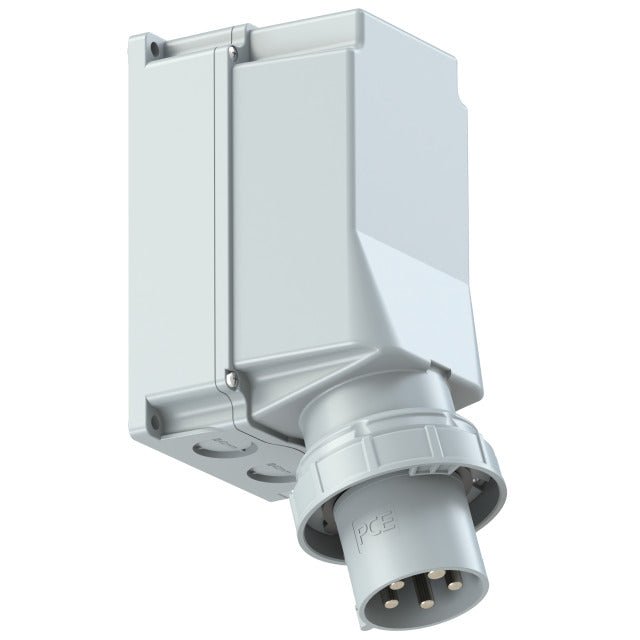

PCE CEE Wall Mounted Plug 400V 125A 5p 1h IP67 POWER TWIST

PCE CEE Wall Mounted Appliance Inlet 125A 5p 1h IP67 POWER TWIST for Emergency Power and Standby Power Infeeds

The PCE CEE wall mounted appliance inlet 125A 5p 1h IP67 POWER TWIST is designed for emergency power and standby power infeeds in buildings, facilities, and infrastructures. As a permanently installed building inlet point, it forms the defined interface for power supply via high-performance generators or external standby power sources. The 1h clock position clearly identifies the connection as an inlet point and distinguishes it from standard CEE plug connections. The wall mounted appliance inlet is designed as a 5-pole surface-mounted appliance inlet with a 125A rated current.

125A for Very High Power Infeed Capacities

With 125A, this version is designed for very high power infeed capacities. It is suitable for applications where 16A, 32A, or even 63A solutions are no longer sufficient and a high-performance building inlet point is required. Typical applications include larger commercial buildings, industrial facilities, extensive technical infrastructures, and inlet points for high-performance emergency power concepts. For those who want to feed high power safely and clearly defined into a building, 125A is the appropriate dimension.

POWER TWIST Version for Professional Continuous Use

The POWER TWIST version is designed for robust, professional applications. The housing is made of PC/ABS, and the contacts are nickel-plated. Additionally, the wall mounted appliance inlet has a pilot contact pin, which makes it interesting for demanding infeed concepts in the field of emergency and standby power. The angled design supports a clean, stable installation at the building inlet point.

High Protection Class and Strong Mechanical Design

With IP67, the wall mounted appliance inlet is reliably protected against dust and water. This is an important point, especially for external inlet points or harsh operating conditions. In addition, there is the robust mechanical design with IK09, which underlines the professional standard of this 125A version. This makes the plug suitable for demanding environments where resilience and operational safety play a central role.

Designed for Large Conductor Cross-Sections

Connection is made via frame terminals with screws. The wall mounted appliance inlet is designed for flexible conductors from 16 to 50 mm² and rigid conductors from 16 to 70 mm². This makes it suitable for infeed solutions where large conductor cross-sections and a correspondingly robust connection are required. Especially in the 125A range, this is crucial for a safe and professional execution of the inlet point.

Advantages at a Glance

• Building inlet point for emergency and standby power infeeds
• 125A rated current for very high power infeed capacities
• 5-pole version (3P+N+PE)
• 1h clock position for clear identification of the inlet point
• POWER TWIST version for professional applications
• IP67 protection class for demanding operating conditions
• nickel-plated contacts and pilot contact pin
• frame terminals with screws for secure wiring
• suitable for large conductor cross-sections
• angled design for fixed installation on the building

Technical Data

• Manufacturer: PCE
• Item number: 545-1
• Version: CEE wall mounted appliance inlet / surface-mounted appliance inlet
• Rated current: 125A
• Number of poles: 5 (3P+N+PE)
• Clock position: 1h
• Protection class: IP67
• Connection technology: frame terminals with screws / screw terminal
• Plug direction: angled
• Flexible conductor: 16 to 50 mm²
• Rigid conductor: 16 to 70 mm²
• Housing material: PC/ABS
• Contact material: CuZn, nickel-plated
• IK code: IK09
