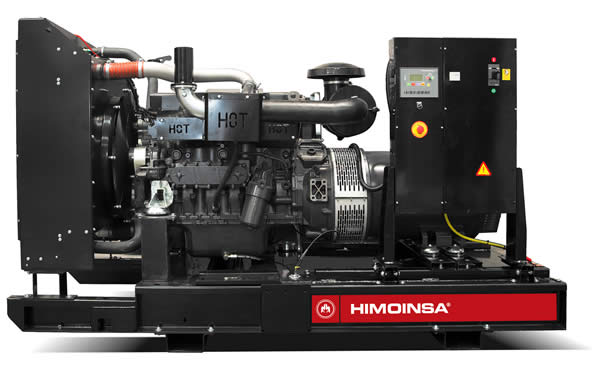

Power generator HIMOINSA HFW-60 T5 IVECO STAGE 3A open
Power generator HIMOINSA HFW-60 T5 IVECO STAGE 3A open is not in stock and will be shipped as soon as available again.
Delivery time: approx. 16 weeks
Availability for pickups could not be loaded
Questions to the product?
Questions to the product?
Shipping Information
Shipping Information
Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).
We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.
Please contact us if you have special delivery requirements.
Power generator HIMOINSA HFW-60 T5 IVECO STAGE 3A open
HFW-60 T5
Rated power: 43.2 cop ; 54.5 pp ; 60 standby
Manufacturer: FPT_IVECO
Model: N45 SM1F
Engine type: Diesel four-stroke
Art of injection: Direct
Type of intake: Turbocharger
Cylinder, number and arrangement: 4 - L
Diameter x travel: 104 x 132
Total displacement: 4.5
Cooling system: liquid (water + 50% glycol)
Engine oil specifications: ACEA E3 - E5
Compression ratio: 17.5:1
Standby fuel consumption: 18
Fuel consumption 100% PRP: 16.7
Fuel consumption 80% PRP: 13
Fuel consumption 50% PRP: 9.5
Oil consumption under full load: 0.1% of Fuel consumption
Total amount of oil (including hoses, filter) 12.8
Total amount of coolant: 18.5
Regulator type mechanical
Air filter type dry
Diesel engines
Four-stroke engines
Water-cooled
Electric starter 12V
Cooler with pressure fan
Filter separator (stand not visible)
Mechanical control
Dry air filter
Hot parts guards
Moving parts guards
Pole: 4
Connection type (standard): Star - series
Coupling type: S-3 11"1/2
Mechanical protection class (according to IEC-34-5): IP23
Control system: self-excited, without brushes
Type of holder: Single bearing type
Clutch system: Flexible disc
Type of cover: Standard (vacuum impregnation)
Electrical control panel and circuit breaker, with measuring devices and control center (according to requirements and configuration)
Four-pole thermomagnetic circuit breaker
Adjustable differential protection (time and in sensitivity), included as standard in the M5 and AS5 control panels with thermomagnetic circuit breaker
Battery charger (included in units with automatic control panel)
Heating resistor (standard in units with automatic -Electrical panel included)
Alternator for charging batteries with ground connection
Installed starter battery(s) (including cable and holder)
Electrical ground connection with intended connection for deep earth electrode (depth earth electrode not included in delivery)
Battery disconnect switch optional
Emergency stop switch
Oil drain set, oil pan
Steel housing
Vibration damper
Fuel tank integrated in the housing
Flow time meter fuel level
High mechanical strength
Surface powder-coated with epoxy polyester (salt spray test of over 1000h )
Drainage cap tank
Steel silencer with -15db(A)
Fuel transfer pump optional
High performance steel silencer with -35db(A) Optional
Maximum temperature exhaust gas operation: 492
Maximum permissible back pressure: 5
Heat dissipation through exhaust pipe: 493
Maximum air flow for combustion: 289
Air flow fan motor: 2.2
Air flow fan alternator: 0.216
Starting power: 3
Starting power: 4.08
Recommended battery: 100
Auxiliary voltage: 12
Fuel type: Diesel
Fuel tank: 145
Length: 2,150
Height: 1,500
Width: 780
Maximum packaging volume: 2.52
Weight with liquids in radiator and oil pan: 948
Capacity tank: 145
Autonomy: 11 hours
