Himoinsa | SKU:
SEV-00503
Reduced by 19%

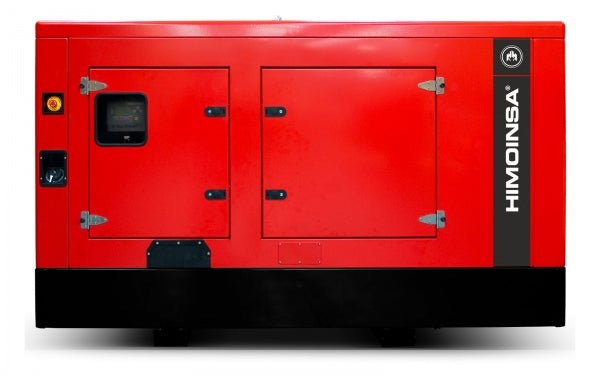

Power generator HIMOINSA HFW-75 T5 IVECO soundproof hood
€21.836,50
€26.923,75
Basic price
/
Not available
VAT included.
Shipping will be calculated at checkout.
Power generator HIMOINSA HFW-75 T5 IVECO soundproof hood is not in stock and will be shipped as soon as available again.
Delivery time: approximately 2 weeks
Availability for pickups could not be loaded
Questions to the product?
Questions to the product?
Shipping Information
Shipping Information
Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).
We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.
Please contact us if you have special delivery requirements.
Power generator HIMOINSA HFW-75 T5 IVECO soundproof hood
€21.836,50
€26.923,75
Basic price
/
Not available
HFW-75 T5
|
Engine specifications 1,500
Rated power: 66.1 prp ; 72.7 standby Manufacturer: FPT_IVECO Model: NEF45 SM 2A Engine type: Diesel four-stroke Type of injection: Direct Type of intake: Turbocharger Cylinder, number and arrangement: 4 - L Diameter x travel: 104 x 132 Total displacement: 4.5 Cooling system: liquid (water + 50% glycol) Specifications engine oil: ACEA E3 - E5 Compression ratio: 17 .5: 1 Fuel consumption standby mode: 19 Fuel consumption 100% PRP: 17.1 Fuel consumption 80% PRP: 12.7 Fuel consumption 50% PRP: 8.6 Oil consumption under full load: 0.5% of fuel consumption Total amount of oil (including hoses, filter) 12.8 Total amount of coolant: 18.5 Regulator type mechanical Air filter type dry Inner diameter output Exhaust pipe: 70.3 Diesel engines Four-stroke engine Water-cooled Electric starting device 12V Cooler with pressure fan Filter separator (stand not visible) Mechanical control Dry air filter Protections for moving parts Three-phase generator
Pole: 4 Connection type (standard): Star - series Coupling type: S-3 11"1/2 Insulation protection class: Class H Mechanical protection class (according to IEC-34-5 ): IP23 Control system: Self-excited, without brushes Voltage regulator: A.V.R.(Electronic) Type of holder: Single bearing version Clutch system: Flexible disc Type of cover: Standard (vacuum impregnation) Electrical system
Electrical panel for control and circuit breakers, with measuring devices and control center (according to requirements and configuration) Four-pole thermomagnetic circuit breaker Adjustable differential protection (time and sensitivity), included as standard in the M5 and AS5 panels with thermomagnetic circuit breaker Battery charger (included in units with automatic control panel) Heating resistor (included as standard in units with automatic control panel) Alternator for charging batteries with earth connection Installed starter battery(s) (including cable and holder) Electrical grounding connection with connection provided for deep earth electrode (depth earth electrode not included) Battery disconnect switch optional Soundproof version
Oil drain set for oil pan Versatile options when assembling large housings with metal tank Steel housing Vibration damper Fuel tank Flow time meter fuel level Emergency stop switch Aggregate box manufactured made of high-quality sheet metal High mechanical strength Low noise level Sound insulation based on high-density volcanic rock wool Surface powder-coated with epoxy polyester (salt spray test of over 1000h) Full maintenance access (water, oil and filter without Dismantling the top) Reinforced lifting hooks for lifting with a crane Hermetic housing (double wall function to collect liquids) Drainage closure tank Drainage closure housing Housing intended for the installation of a mobile set High performance steel muffler with -35db(A) Three-way fuel transfer valve (available with 1/2" and 3/8" connections) Optional Fuel transfer pump Optional Plant data
EXHAUST SYSTEM
Maximum temperature exhaust gas operation: 525 Flow rate exhaust gas operation: 0.103 Maximum permissible back pressure: 5 Outer diameter exhaust pipe: 90 Heat dissipation through exhaust pipe: 662.6 QUANTITY OF AIR REQUIRED
Maximum air flow for combustion: 295 Air flow fan motor: 2.2 Air flow fan alternator: 0.216 COMMISSIONING SYSTEM
Starting power: 3 Starting power: 4.08 Recommended battery: 100 Auxiliary voltage: 12 FUEL SYSTEM
Fuel type: Diesel Fuel tank: 240 Other fuel tank values: 450, 850 Dimensions
Length: 2,750 Height: 1,760 Width: 1,100 Maximum packaging volume: 5.32 Weight with liquids in radiator and oil pan: 1,564 Tank capacity: 240 Autonomous ie : 19 hours Sound level: 69 |
