Himoinsa | SKU:
SEV-00537
Reduced by 20%

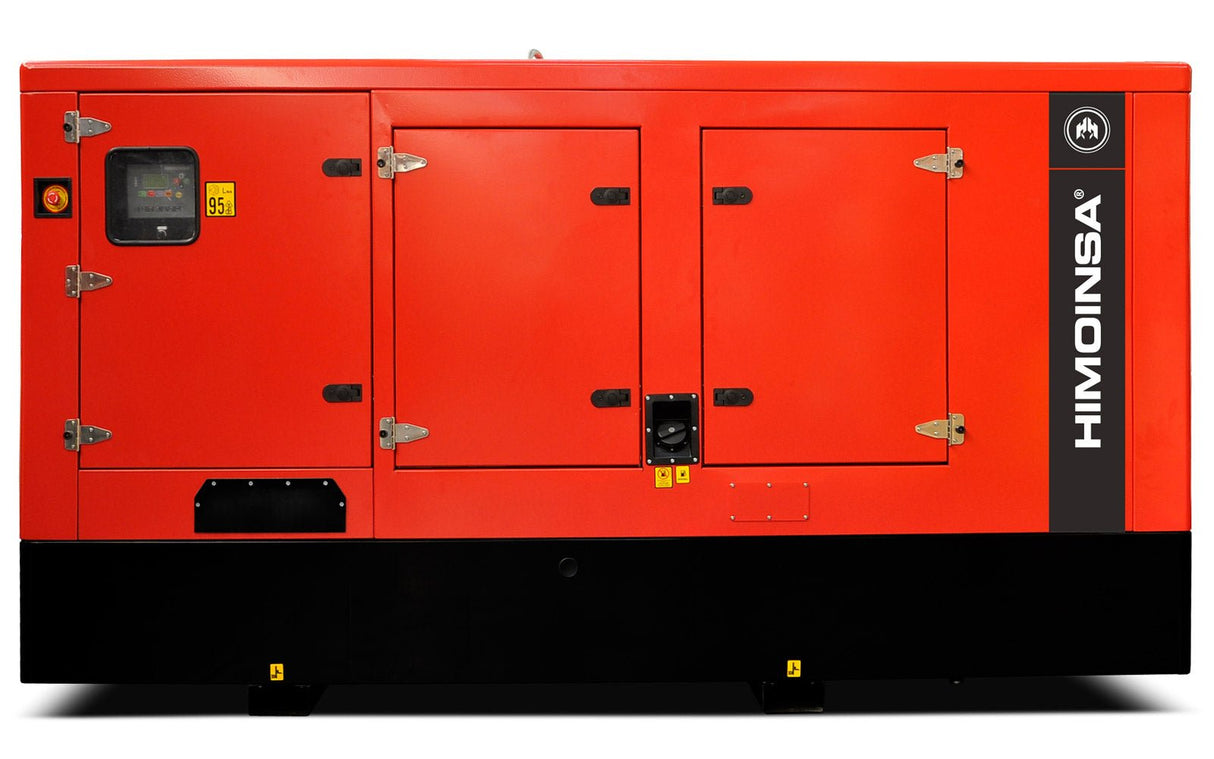

Power generator HIMOINSA HFW-160 T5 IVECO 2 soundproof hood
€31.136,35
€38.918,95
Basic price
/
Not available
VAT included.
Shipping will be calculated at checkout.
Power generator HIMOINSA HFW-160 T5 IVECO 2 soundproof hood is not in stock and will be shipped as soon as available again.
Delivery time: approx. 16 weeks
Availability for pickups could not be loaded
Questions to the product?
Questions to the product?
Shipping Information
Shipping Information
Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).
We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.
Please contact us if you have special delivery requirements.
Power generator HIMOINSA HFW-160 T5 IVECO 2 soundproof hood
€31.136,35
€38.918,95
Basic price
/
Not available
HFW-160 T5
Engine specifications 1,500
Rated power: 137.7 prp ; 152 standby
Manufacturer: FPT_IVECO
Model: NEF67 TM 3A
Engine type: Diesel four-stroke
Type of injection: Direct
Type of intake: With turbocharger and aftercooling
Cylinders, number and arrangement: 6 - L
Diameter x Travel: 104 x 132
Total displacement: 6.7
Cooling system: liquid (water + 50% glycol)
Specifications Engine oil : ACEA E3 - E5
Compression ratio: 17.5: 1
Fuel consumption standby mode: 39
Fuel consumption 100% PRP: 36
Fuel consumption 80% PRP: 29
Fuel consumption 50% PRP: 18
Oil consumption under full load: 0.5% of Fuel consumption
Total amount of oil (including hoses, filter) 17.2
Total amount of coolant: 25.5
Regulator type mechanical
Air filter type dry
Inner diameter exhaust pipe outlet: 70
Diesel engines
Four-stroke engines
Electric starter 12V
Cooler with pressure fan
Filter separator (stand not visible)
Mechanical control
Dry air filter
Hot parts protection devices
Moving parts protection devices
Three-phase generator
Pole: 4
Connection type (standard): Star - series
Coupling type: S-3 11"1/2
Mechanical protection class (according to IEC-34-5): IP23
Control system: self-excited, without brushes
Type of holder: Single bearing version
Clutch system: Flexible disc
Type of cover: Standard (vacuum impregnation)
Electrical system
Electrical control panel and circuit breaker, with measuring devices and control center (according to requirements and configuration)
Four-pole thermomagnetic circuit breaker
Adjustable differential protection (time and in sensitivity), included as standard in the M5 and AS5 switchboards with thermomagnetic circuit breaker
Battery charger (included in units with automatic switchboard)
Heating resistor (standard in units with automatic -Electrical panel included)
Alternator for charging batteries with ground connection
Installed starter battery(s) (including cable and holder)
Electrical ground connection with intended connection for deep earth electrode (depth earth electrode not included in delivery)
Battery disconnect switch optional
Soundproof version
Oil drain set for oil pan
Versatile options when assembling large housings with metal tank
Steel housing
Vibration damper
Fuel tank
Fuel level flow timer
Emergency stop switch
Aggregate box made of high-quality sheet metal
High mechanical resilience
Low noise level
Sound insulation based on high-density volcanic rock wool
Surface powder-coated with epoxy polyester ( Salt spray test of over 1000h)
Full maintenance access (water, oil and filter without removing the top)
Reinforced lifting hooks for lifting with crane
Hermetic housing (double-wall function to collect liquids)
Drainage closure tank
Drainage closure housing
Housing for installing a Mobile sets provided
High performance steel silencer with -35db(A)
Three-way valve for transferring fuel (available with 1/2" and 3/8" connections) Optional
Fuel transfer pump Optional
Plant data
EXHAUST SYSTEM
Maximum temperature exhaust gas operation: 570
Flow rate exhaust gas operation: 0.205
Maximum permissible back pressure: 5
Outer diameter exhaust pipe : 120
Heat dissipation through exhaust pipe: 688.9
REQUIRED AMOUNT OF AIR
Maximum air flow for combustion: 586
Air flow fan motor: 3.8
Air flow fan alternator: 0.514
COMMISSIONING SYSTEM
Starting power: 3
Starting power: 4.08
Recommended battery: 100
Auxiliary voltage: 12
FUEL SYSTEM
Fuel type: Diesel
Fuel tank: 450
Other fuel tank values: 600, 1,100
Dimensions
Length: 3,300
Height: 1,956
Width: 1,200
Maximum packaging volume: 7.75
Weight with fluids in radiator and oil pan: 2.400
Capacity tank: 450
Autonomy: 16 hours
Sound level: 68
