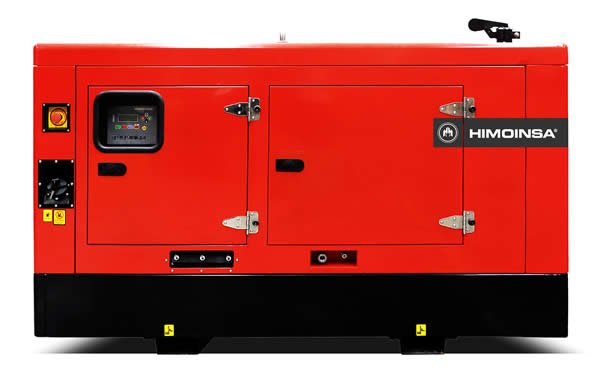

Power generator HIMOINSA HYW - 45 T5 STAGE 2 soundproof hood
€16.844,45
€19.819,45
Basic price
/
Not available
VAT included.
Shipping will be calculated at checkout.
Power generator HIMOINSA HYW - 45 T5 STAGE 2 soundproof hood is not in stock and will be shipped as soon as available again.
Delivery time: approx. 16 weeks
Availability for pickups could not be loaded
Questions to the product?
Questions to the product?
Shipping Information
Shipping Information
Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).
We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.
Please contact us if you have special delivery requirements.
Power generator HIMOINSA HYW - 45 T5 STAGE 2 soundproof hood
€16.844,45
€19.819,45
Basic price
/
Not available
HYW - 45 T5
Engine specifications 1,500
Rated power: 37.7 prp ; 41.4 standby
Manufacturer: YANMAR
Model: 4TNV98T GGEH
Engine type: Diesel four-stroke
Type of intake: Turbocharged
Cylinder, number and arrangement: 4 - L
Diameter x travel : 98 x 110
Total displacement: 3,319
Cooling system: coolant
Specifications engine oil: SAE 3 class 10W30 / API grade CD,CF
Compression ratio: 18.1
Standby fuel consumption: 10.11
Fuel consumption 100% PRP: 9.16
Fuel consumption 75% PRP: 6.94
Fuel consumption 50% PRP: 4.89
Oil consumption under full load: 0.27
Maximum oil quantity: 10.5
Total quantity of coolant: 9
Regulator type mechanical
Air filter type Dry
Inner diameter exhaust pipe outlet: 45
Diesel engines
Four-stroke engines
Water-cooled
Electric starter 12V
Cooler with pressure fan
Filter separator (stand visible)
Mechanical control
Hot parts guards
Moving parts guards
Three-phase generator
Pole: 4
Connection type (standard): Star - series
Coupling type: S-3 11"1/2
Mechanical protection class (according to IEC-34-5): IP23
Control system: self-excited, without brushes
Type of holder: Single bearing type
Clutch system: Flexible disc
Type of cover: Standard (vacuum impregnation)
Electrical system
Electrical control panel and circuit breaker, with measuring devices and control center (according to requirements and configuration)
Four-pole thermomagnetic circuit breaker
Adjustable differential protection (time and in sensitivity), included as standard in the M5 and AS5 control panels with thermomagnetic circuit breaker
Battery charger (included in units with automatic control panel)
Heating resistor (standard in units with automatic -Electrical panel included)
Alternator for charging batteries with ground connection
Installed starter battery(s) (including cable and holder)
Electrical ground connection with intended connection for deep earth electrode (depth earth electrode not included in delivery)
Battery disconnect switch optional
Soundproof version
Oil drain set for oil pan
Versatile options when installing large housings with metal tank
Steel housing
Vibration damper
Fuel tank integrated into the housing
Fuel level flow timer
Emergency stop switch
Aggregate box made of high quality Sheet metal
High mechanical strength
Low noise level
Sound insulation based on high-density volcanic rock wool
Surface with Epoxy polyester powder coated (salt spray test of over 1000h)
Full maintenance access (water, oil and filters without removing the top)
Reinforced lifting hooks for lifting with crane
Hermetic housing (double wall function for collecting liquids)
Drainage closure tank
Drainage closure housing
Housing for the installation of a mobile kit is provided
High performance steel silencer with -35db(A)
Fuel transfer pump optional
Plant data
EXHAUST SYSTEM
Maximum temperature exhaust gas operation: 480
Flow rate exhaust gas operation: 10.45
Maximum permissible back pressure: 1000
Outer diameter exhaust pipe: 65
QUANTITY OF AIR REQUIRED
Maximum air flow for combustion: 194.16
Air flow fan motor: 0.979
Air flow fan alternator: 0.09
COMMISSIONING SYSTEM
Starting power: 2.3
Starting power: 3.13
Recommended battery: 92
Auxiliary voltage: 12
FUEL SYSTEM
Fuel type: Diesel
Fuel tank: 100
Other fuel tank values: 190, 330
Dimensions
Length: 2,100
Height: 1.350
Width: 975
Maximum packaging volume: 2.76
Weight with liquids in radiator and oil pan: 944
Tank capacity: 100
Autonomy: 14 hours
Sound level: 62.45
