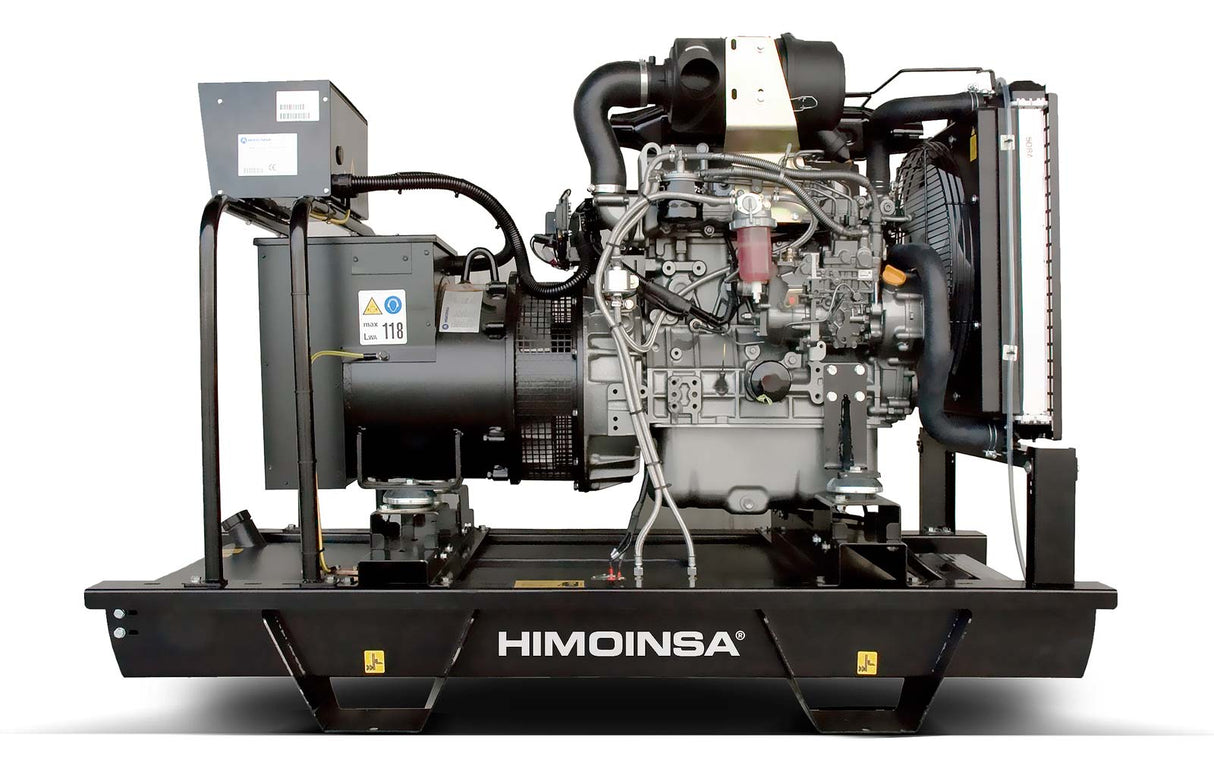

Generator HIMOINSA HYW - 45 T5 STAGE 3A open version
HYW - 45 T5
|
Engine specifications 1,500
Rated power: 37.7 prp ; 41.8 standby Manufacturer: YANMAR Model: 4TNV98T ZGGEH Engine type: Diesel four-stroke Type of injection: Direct Type of intake: Turbocharger Cylinders, number and arrangement: 4 - L Diameter x Travel: 98 x 110 Total displacement: 3,319 Cooling system: Coolant Engine oil specifications: API CF,CF-4,CI-4 Compression ratio: 18.1 Fuel consumption Standby mode: 10.11 Fuel consumption 100% PRP: 9.16 Fuel consumption 75% PRP: 6.94 Fuel consumption 50% PRP: 4.89 Oil consumption under full load: 0, 27 Maximum oil quantity: 11.2 Total quantity of coolant: 9 Regulator type electronic Air filter type dry Inner diameter outlet exhaust pipe: 45 Diesel engines Four-stroke engines Water-cooled Electric starter 12V Radiator with pressure fan Filter separator (stand visible) Electronic control Dry air filter Protection devices for hot parts Protection devices for moving parts Three-phase generator
Poles: 4 Connection type (standard): Star - series Coupling type: S-3 11"1/2 Insulation protection class: Class H Mechanical protection class (according to IEC-34-5 ): IP23 Control system: Self-excited, without brushes Voltage regulator: A.V.R. (Electronic) Type of holder: Single bearing type Clutch system: Flexible disc Type of cover: Standard (vacuum soak) Electrical system
Electrical panel for control and circuit breakers, with measuring devices and control center (according to requirements and configuration) Four-pole thermomagnetic circuit breaker Adjustable differential protection (time and sensitivity), included as standard in the M5 and AS5 panels with thermomagnetic circuit breaker Battery charger (included in units with automatic control panel) Heating resistor (included as standard in units with automatic control panel) Alternator for charging batteries with earth connection Installed starter battery(s) (including cable and holder) Electrical grounding connection with connection provided for deep earth electrode (depth earth electrode not included) Battery disconnect switch Optional Version Fixed Default
Emergency stop switch Steel housing Vibration damper Fuel tank integrated in the housing Flow timer fuel level Drainage cap tank Steel silencer with -15db(A) Fuel Transfer pump Optional High performance steel silencer with -35db(A) Optional Plant data
EXHAUST SYSTEM
Maximum temperature exhaust gas operation: 480 Flow rate exhaust gas operation: 10.45 Maximum permissible back pressure: 1000 QUANTITY OF AIR REQUIRED
Maximum air flow for combustion: 194.16 Air flow fan motor: 0.979 Air flow fan alternator: 0.09 COMMISSIONING SYSTEM
Starting power: 2.3 Starting power: 3.13 Recommended battery: 92 Auxiliary voltage: 12 FUEL SYSTEM
Fuel type: Diesel Fuel tank: 120 Dimensions
Length: 1,850 Height: 1.500 Width: 780 Maximum packaging volume: 2.16 Weight with liquids in radiator and oil pan: 614 Tank capacity: 120 Autonomy: 17 hours |
