Power generator PRAMAC P 4000 YANMAR el
PRAMAC · DIESEL · GENERATOR

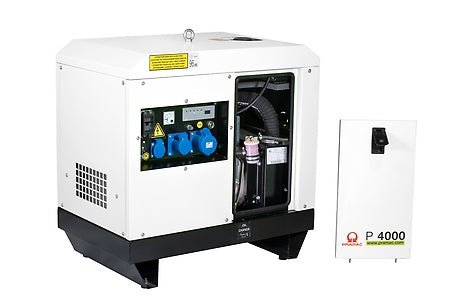

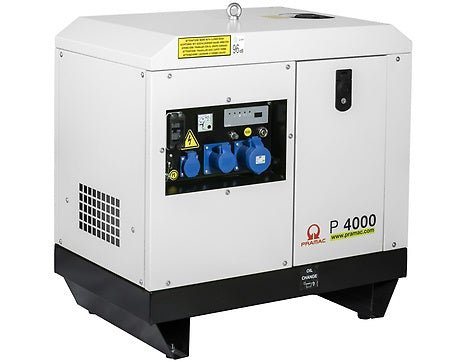

PRAMAC P 4000 YANMAR el
PRAMAC diesel generator with 3.52 kVA maximum output (LTP), 2.88 kW continuous power (COP), Yanmar L70V engine, Elektrostart, 230 V and AVR regulation. Fuel tank: 18 L; net weight: 135 kg. Socket configuration: 1 x SCHUKO 230V 16A IP54, 1 x 2P+T CEE 230V 16A IP44, 1 x 2P+T CEE 230V 32A IP44.
Key specifications
Professional power generation
The PRAMAC P 4000 YANMAR el supplies appropriately rated electrical loads. The continuous power value 2.88 kW should guide load planning. Starting currents, phase distribution and individual socket current ratings must be considered.
Features and equipment
Model-specific engine
Starting system
Maximum output; not continuous
Continuous COP rating
Conventional voltage regulation
Voltage configuration
Fuel capacity
Net weight
Technical highlights – explained
Maximum versus continuous output
The maximum LTP rating is 3.52 kVA; continuous power is 2.88 kW COP. Motor starting current may require added reserve.
Voltage regulation
The generator uses AVR voltage regulation. This conventional alternator is not an inverter. Assess suitability for sensitive electronic equipment.
Single- and three-phase loads
Single-phase output for suitable 230 V loads; socket current ratings must still be observed.

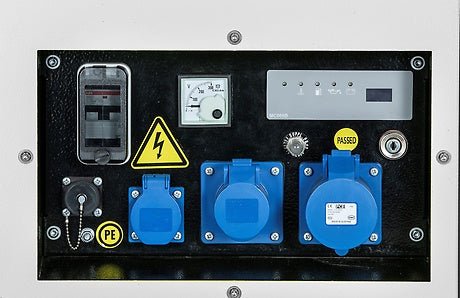

Connections
Listed sockets: 1 x SCHUKO 230V 16A IP54, 1 x 2P+T CEE 230V 16A IP44, 1 x 2P+T CEE 230V 32A IP44. Follow all voltage, current and protection ratings.
Operational safety
Operate combustion-engine generators outdoors because of carbon monoxide. Building backup requires professionally designed isolation, changeover and protection.
Suitable applications
Commercial temporary power
Suitability depends on loads, connection ratings and safety measures.
Trade and service
Suitability depends on loads, connection ratings and safety measures.
Site power supply
Suitability depends on loads, connection ratings and safety measures.
Technical specifications

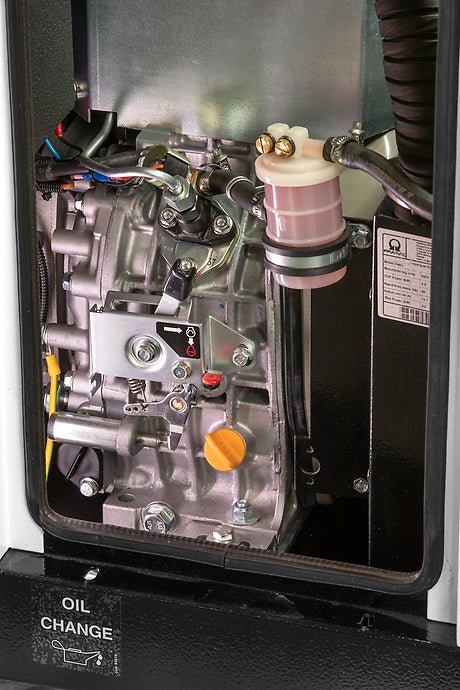

Engine
| Engine | Yanmar L70V |
|---|---|
| Fuel | diesel |
| Starter | Elektrostart |
| Cooling | Luft |
| Displacement | 0,32 |
Alternator and regulation
| Voltage regulation | AVR |
|---|---|
| Alternator type | Conventional generator |
Electrical output
| Maximum output LTP | 3.52 kVA |
|---|---|
| Continuous output COP | 2.88 kW |
| Continuous COP (kVA) | 3.2 |
| Voltage | 230 V |
| Frequency | 50 Hz |
Tank and operation
| Fuel tank | 18 L |
|---|---|
| Fuel | diesel |
| Sound pressure at 7m | 68 |
Sockets
| Connections | 1 x SCHUKO 230V 16A IP54, 1 x 2P+T CEE 230V 16A IP44, 1 x 2P+T CEE 230V 32A IP44 |
|---|
Dimensions and weight
| Dimensions | 80 x 52,5 x 85 |
|---|---|
| Net weight | 135 kg |
Other specifications
| Manufacturer number | PF322SYAZ05 |
|---|---|
| Emission class listed | Stage 5 |
| Protection listed | Isolationsüberwachung |
Frequently asked questions
What is continuous power?
2.88 kW COP.
What fuel is required?
diesel
How does it start?
Elektrostart
Is it an inverter?
No, it uses conventional voltage regulation.
Can it power a building?
Only with appropriate qualified electrical planning, transfer switching and protection.
Accessories and options
Check accessory compatibility using the exact PRAMAC article number PF322SYAZ05. Options may require separate approval and are not automatically included.
PRAMAC – advice from SEV
We assist with generator sizing, connection options and safe operation.
