Yorking | SKU: SEV-00180

Reduced by 34%

Power generator YORKING YDY 18 S3-E

Name: Power generator YORKING YDY 18 S3-E
Brand: Yorking
Price: 7137.98 EUR
Availability: InStock

€7.137,98 €10.798,49

VAT included. Shipping will be calculated at checkout.

Power generator YORKING YDY 18 S3-E is not in stock and will be shipped as soon as available again.

Delivery time: approx. 6 days

Collection possible from warehouse Fabrikstr. 1

Collection date after consultation

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

Your legal guarantee rights

LEGAL GUARANTEE Minimum two-year legal guarantee protection for goods sold in the European Union. Consumers can claim their rights under the legal guarantee of conformity, for example if goods: do not match the description; do not function as intended. Sellers are liable for any lack of conformity which existed when the goods were delivered, and which becomes apparent within the legal guarantee period. Sellers in such a situation are required to offer: free repair or free replacement; in some cases, a price reduction or full reimbursement. Some countries have a longer legal guarantee period. For second-hand goods, a shorter period may apply, but not less than one year. For more information on your rights in a specific country, scan the QR code below or ask the seller. europa.eu/youreurope/guarantees What to do if you receive non-conforming goods: 1 Contact the seller as soon as possible to report the issue; 2 Provide proof of purchase, such as a receipt, invoice, or bank statement. Sellers and producers may also offer commercial guarantees, which apply independently from the legal guarantee. For example, you may see this GARAN label representing a commercial guarantee of durability offered by the producer at no additional cost and covering the entire good.

Open the legal guarantee notice on Your Europe

YORKING / STAGER · DIESEL · 3-PHASE

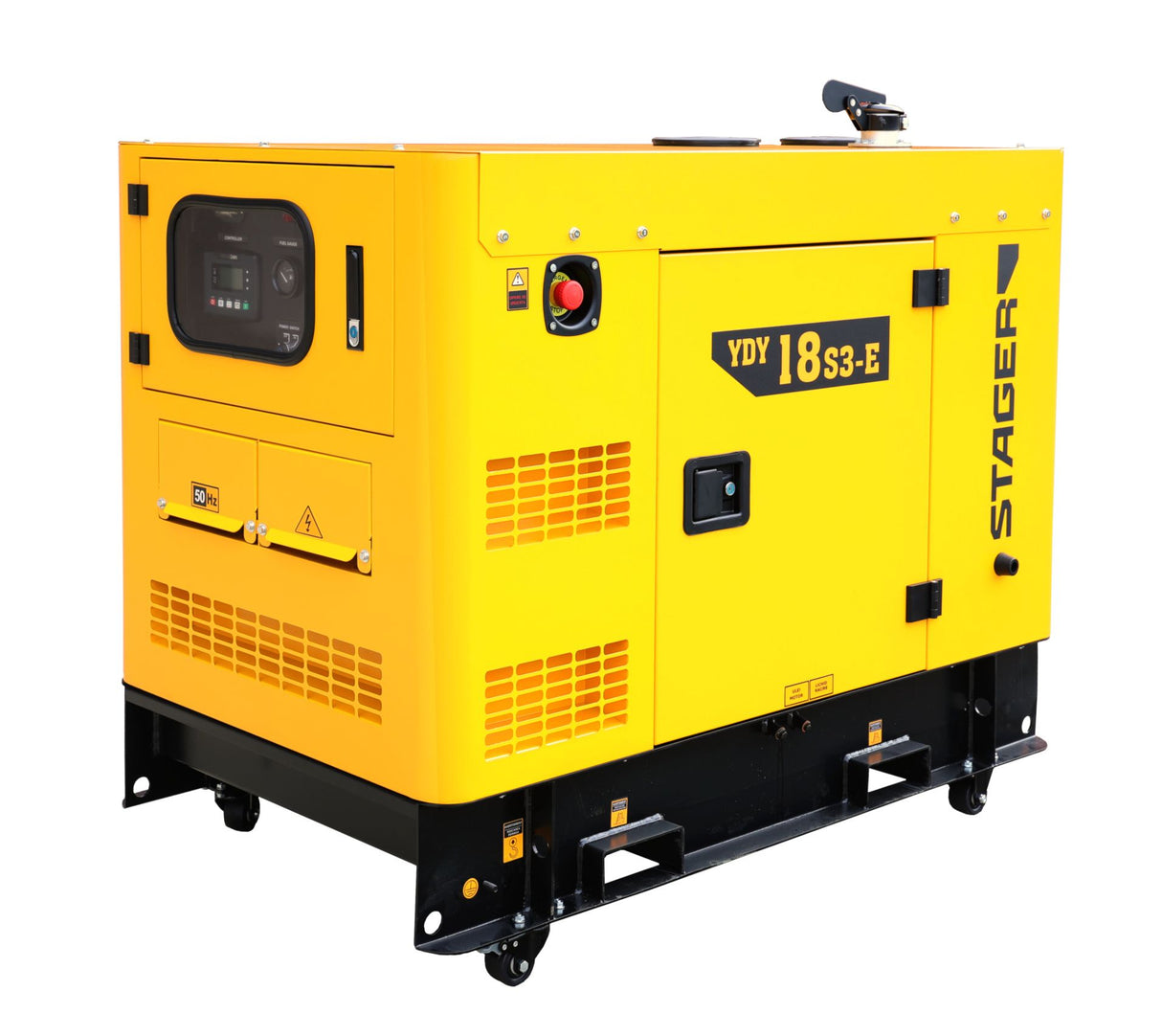

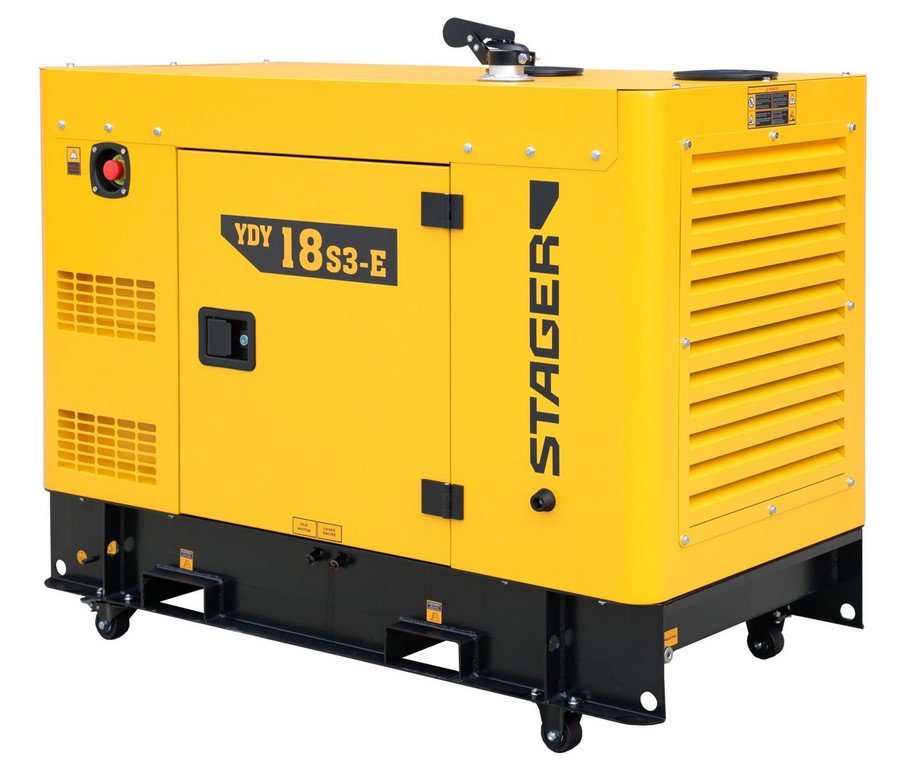

YORKING YDY 18 S3-E

Sound-attenuated diesel generator with AVR and electric start

16 kVA

Rated power

18 kVA

Maximum power

230/400 V

Three-phase

100 l

Diesel tank

1.500

rpm

600 kg

Weight

Short description

Sound-attenuated, three-phase diesel generator rated at 16 kVA with 18 kVA maximum output, water-cooled YTO YND485D engine, YORKING Y164D alternator with AVR and electric start. Connections: two 230 V Schuko sockets and a 400 V terminal strip. Tank: 100 litres; weight: 600 kg per SEV product data.

Product description

The YORKING YDY 18 S3-E supplies three-phase electricity for commercial sites, construction projects and backup power applications. Its water-cooled diesel engine operates at 1,500 rpm. Automatic voltage regulation (AVR) helps maintain stable voltage under varying loads. The enclosed sound-attenuated housing has four wide-opening doors for service access. Digital controls provide operating status information; an automatic transfer switch (ATS) is available as an option.

Features & benefits

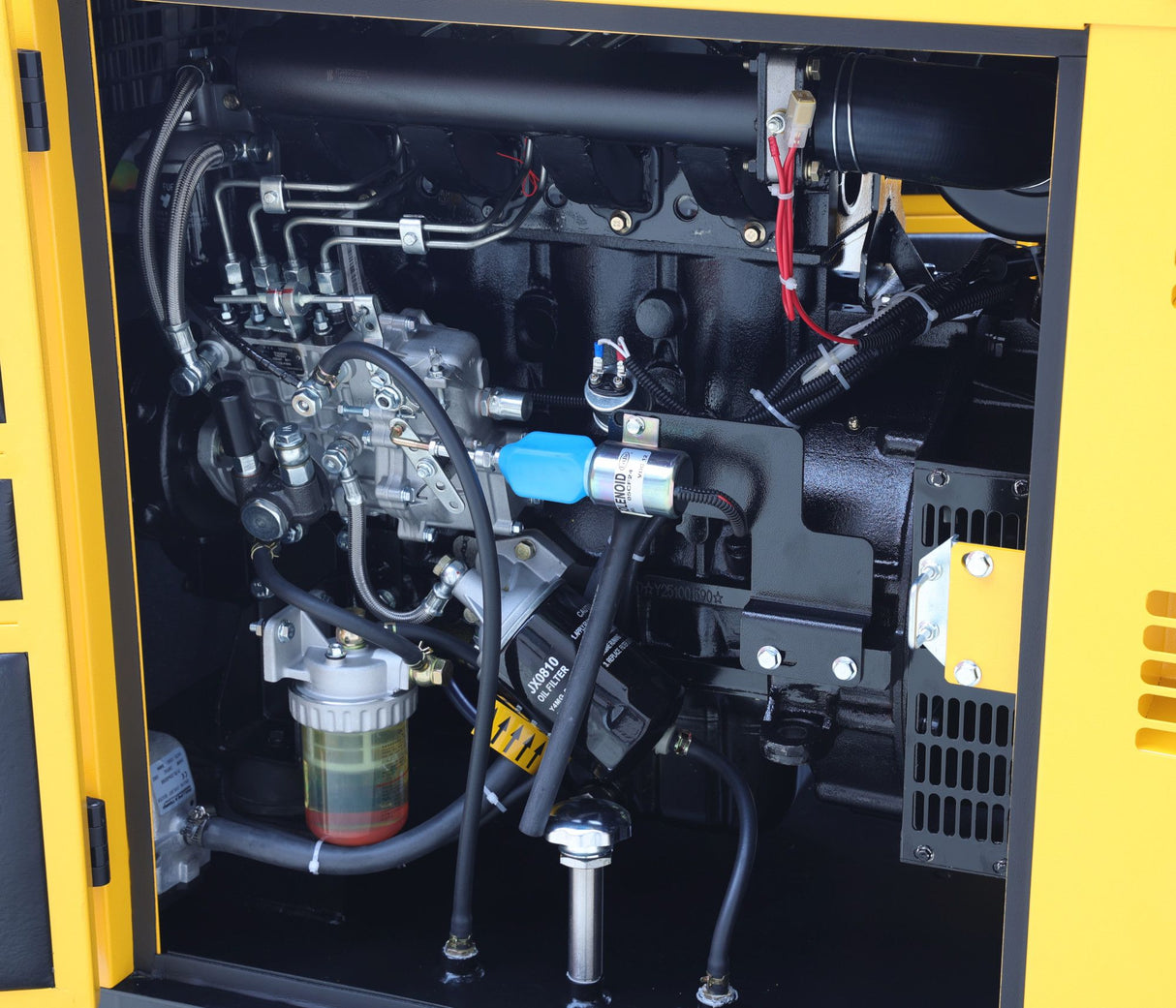

✓ Water-cooled YTO four-cylinder diesel engine

✓ YORKING Y164D alternator with AVR

✓ Electric starting with 12 V system

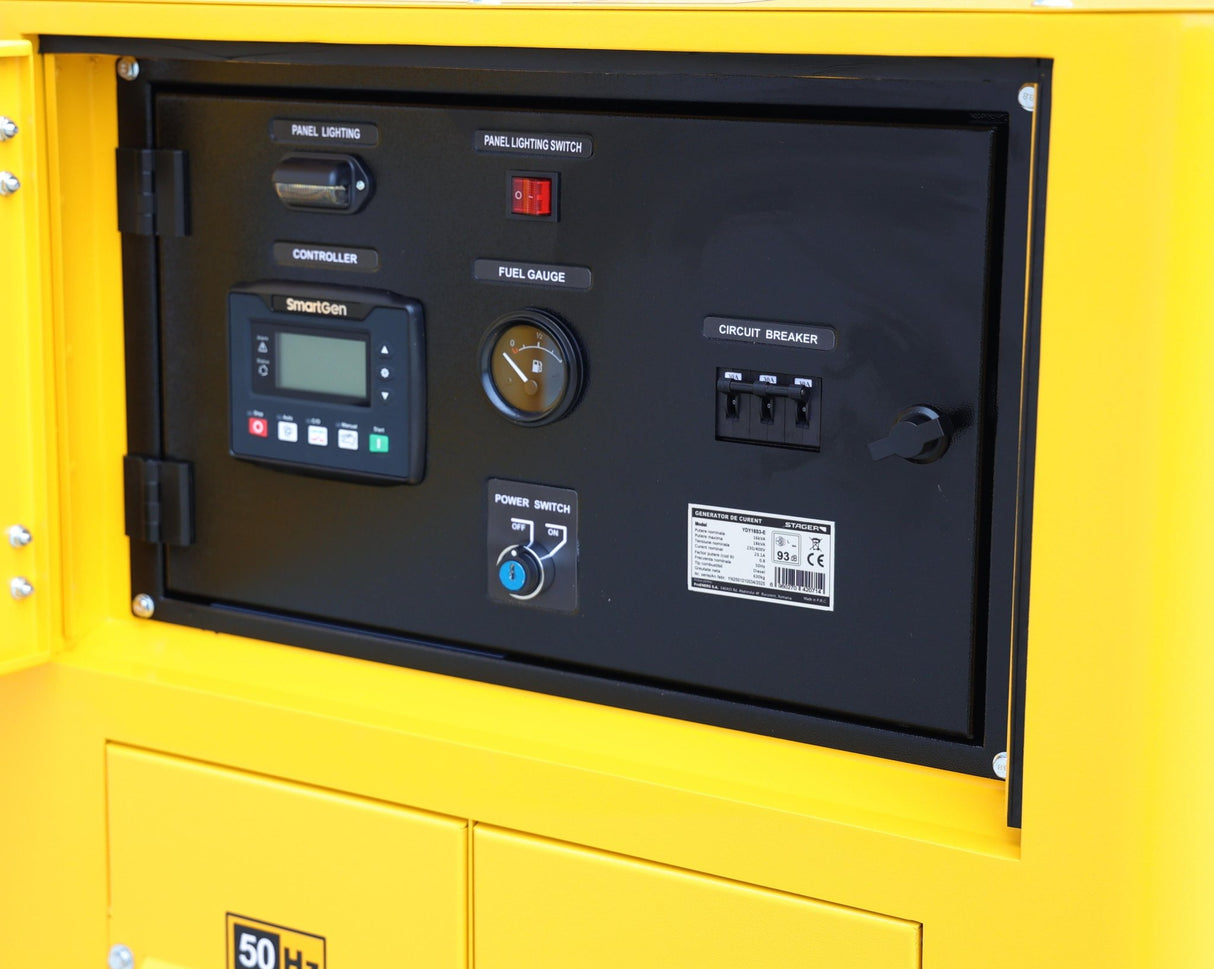

✓ Digital controller for operating status monitoring

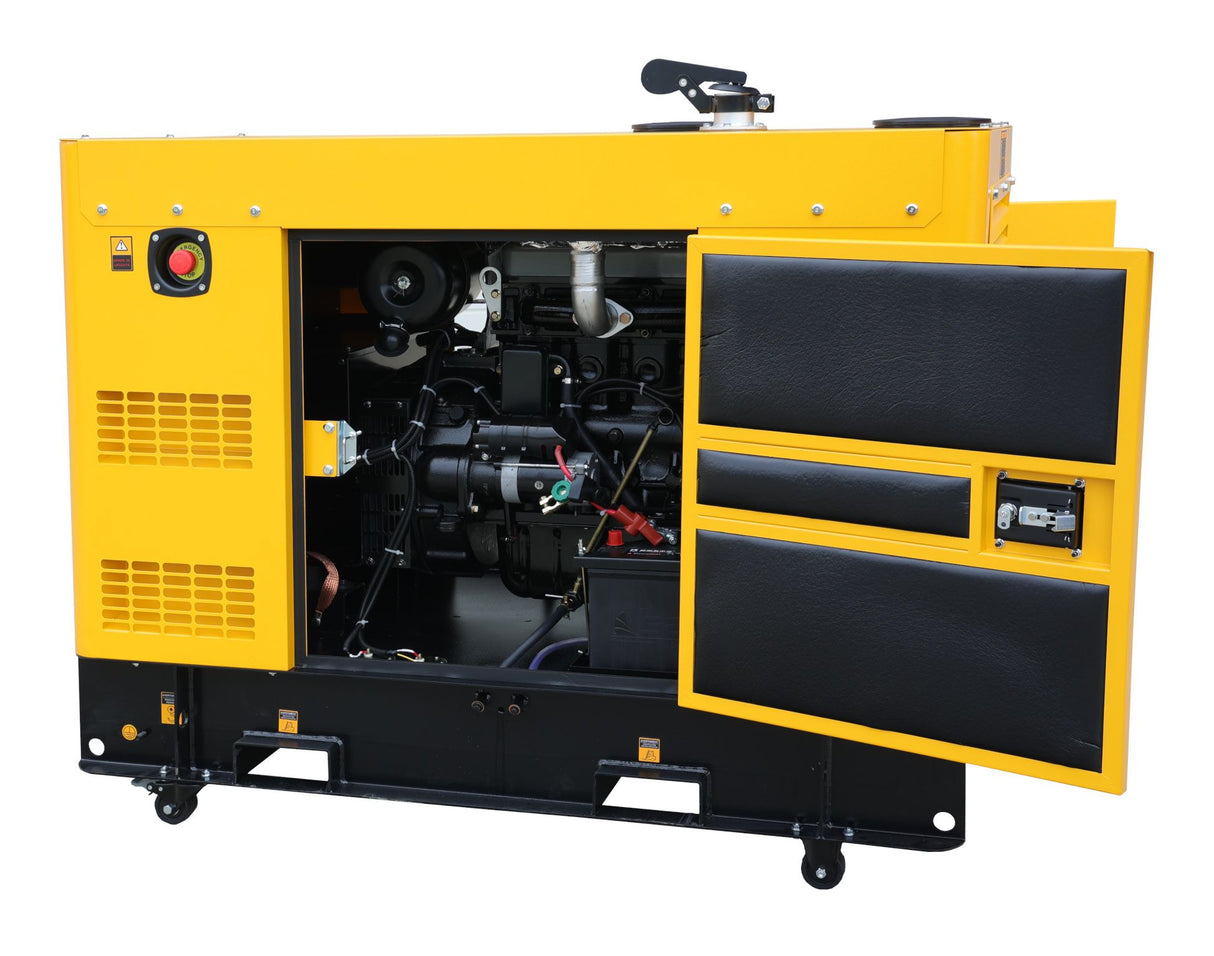

✓ Sound-attenuated housing with service doors

✓ ATS connection for optional automatic transfer

✓ Two Schuko sockets and 400 V terminal strip

✓ Wheeled base for positioning

Typical applications

Emergency backup

Commercial buildings and technical equipment

Commercial & industrial

Workshops and commercial equipment

Construction & installation

Temporary site power

Agriculture

Independent power for farm equipment

Technical specifications

Power & electrical data

Rated power

16 kVA / 12,8 kW

Maximum power

18 kVA / 14,4 kW

Voltage

230 / 400 V

Rated current

23 A

Frequency

50 Hz

Power factor

0,8

Phases

Poles

Engine

Manufacturer

YTO

Model per SEV product page

YND485D

Fuel

Diesel

Configuration

4 Zylinder, 4-Takt / 4 cylinders, 4-stroke

Cooling

Wasser / Water

Speed

1.500 U/min / rpm

Displacement

2.156 cm³

Bore × stroke

85 × 95 mm

Compression ratio

18:1

Engine output

17 kW / 1.500 U/min

Generator / alternator

Manufacturer

YORKING

Model

Y164D

Voltage regulation

AVR

Insulation class

Fuel tank & operation

Tank capacity per SEV

100 l

Specific fuel consumption

< 247 g/kWh

Runtime per SEV

ca. 21 h / approx. 21 h

Sound pressure at 7 m

70 dB(A)

Connections

230 V

2 × Schuko

400 V

Klemmleiste / Terminal strip

ATS

optional

Control & starting

Controller

Digitales Steuerpanel / Digital control panel

Starting

Elektrostart / Electric start

Starter

12 V / 1,4 kW

Battery

12 V / 80 Ah

Dimensions & weight

Dimensions (L × W × H)

1.450 × 780 × 1.050 mm

Weight per SEV

600 kg

Enclosure

Schallgedämmt / Sound-attenuated

Wheels

vorhanden / included

Additional details

Engine oil per SEV

SAE 10W30

ATS transfer switch

auf Anfrage / on request

Service access

4 Türen, 180° Öffnung / 4 doors opening 180°

SEV STROMERZEUGER

We can advise on generator selection, system integration and automatic transfer solutions for your application.
